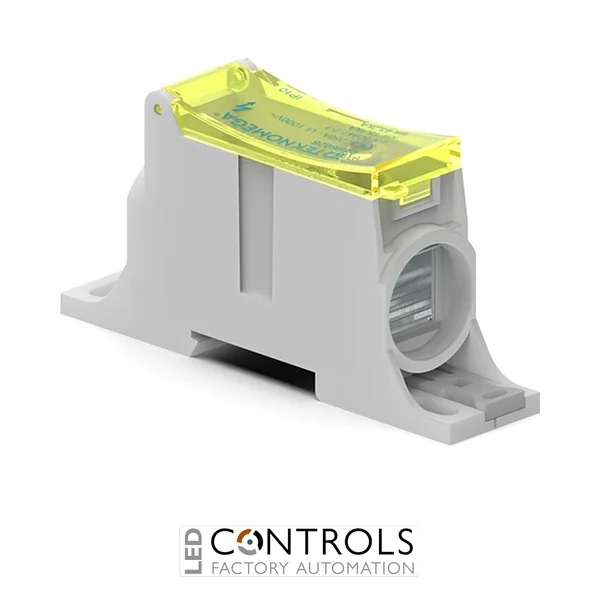

Teknomega PTB6025 single-pole 250A power terminal block with 1 input and 1 output for copper and aluminium conductors up to 95mm².
£16.41
The Teknomega PTB6025 is a heavy-duty single-pole power terminal block designed for terminating and distributing high-current conductors in industrial switchboards, electrical distribution panels and automation cabinets. Also referenced as PTB 250, it features a 1 input / 1 output configuration with a 250A current rating, making it ideal for demanding industrial power distribution applications.
Manufactured using a PA6 UL94-V0 self-extinguishing insulating body with a tinned copper conductor block, the PTB6025 provides excellent electrical conductivity, corrosion resistance and long-term reliability. Galvanised steel screws and aluminium clamps ensure secure cable retention, while the transparent protective cover improves operator safety and allows quick visual inspection of conductor terminations.
Suitable for conductor sizes from 50 mm² to 95 mm² (stripped conductors) or 35 mm² to 95 mm² (with ferrules), the PTB6025 is rated for 1000V insulation voltage with a 15.1kA short-time withstand current and a 43.2kA peak withstand current, making it suitable for demanding industrial electrical installations.
The Teknomega PTB6025 provides a secure and efficient solution for terminating larger power conductors in industrial electrical systems. Its robust construction delivers low-resistance electrical connections while simplifying installation, inspection and maintenance.
Designed for OEM panel builders, electrical contractors and industrial engineers, the PTB6025 is ideal for machine control systems, switchboards, commercial electrical installations and power distribution equipment where dependable conductor termination is essential.
| Current | 250 A |
|---|---|
| Phase | Single Phase |
| IP Rating | IP10 |
| Manufacturer | Teknomega |
| Series | PTB Power Terminal Blocks |
| Model | PTB6025 |
| Reference | PTB 250 |
| Product type | Power terminal block |
| Number of poles | 1 |
| Connections | 1 input / 1 output |
| Current rating | 250A |
| Stripped conductor | 50–95 mm² |
| Conductor with ferrule | 35–95 mm² |
| Rated insulation voltage (Ui) | 1000V |
| Impulse withstand voltage (Uimp) | 8kV |
| Short-time withstand current (Icw) | 15.1kA (1 second) |
| Peak withstand current (Ipk) | 43.2kA |
| Protection rating | IP10 |
| Insulating body | PA6 UL94-V0 |
| Conductor material | Tinned copper |
| Clamp material | Galvanised steel and aluminium |
| Maximum operating temperature | +85°C |
| Colour | Grey |
| Mounting | DIN rail or panel mounting |
| Dimensions | 111 × 27 × 56 mm |
| Weight | 0.195kg |
| Standard | EN 60947-7-1 |
| HS Code | 85369095 |
The PTB6025 is a 250A power terminal block designed for terminating and distributing conductors inside industrial switchboards, electrical distribution panels and automation systems.
It accepts stripped conductors from 50–95 mm² and ferruled conductors from 35–95 mm².
Yes. The terminal is designed to provide secure and reliable connections for both copper and aluminium conductors.
The PTB6025 has a rated insulation voltage of 1000V with an 8kV impulse withstand voltage.
The terminal block can be mounted directly onto a DIN rail or onto a mounting panel within an electrical enclosure.
Teknomega PTB power terminal blocks are trusted by panel builders, OEM manufacturers and electrical engineers for delivering reliable conductor termination and safe industrial power distribution.
