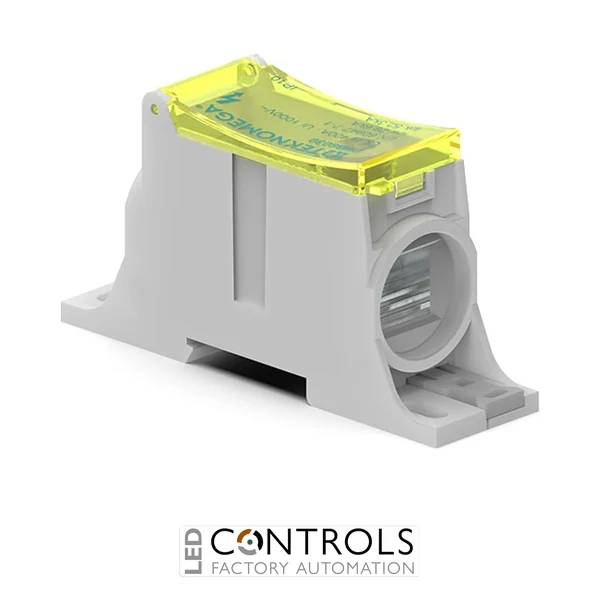

Teknomega PTB6030 single-pole 400A power terminal block with 1 input and 1 output for copper and aluminium conductors up to 185mm².
£24.44
The Teknomega PTB6030 is a heavy-duty single-pole power terminal block engineered for terminating and distributing high-current conductors in industrial switchboards, electrical distribution panels and automation cabinets. Also referenced as PTB 400, it features a 1 input / 1 output configuration with a 400A current rating, making it ideal for demanding industrial power distribution and feeder cable applications.
Manufactured using a durable PA6 UL94-V0 self-extinguishing insulating body with a tinned copper conductor block, the PTB6030 delivers excellent electrical conductivity, corrosion resistance and dependable long-term performance. Galvanised steel screws with aluminium clamps provide secure conductor retention, while the transparent protective cover helps prevent accidental contact and allows quick visual inspection of cable terminations.
Suitable for conductor sizes from 25 mm² to 185 mm² (stripped conductors) or 25 mm² to 150 mm² (conductors with ferrules), the PTB6030 offers a 1000V rated insulation voltage, 29.6kA short-time withstand current and 52.3kA peak withstand current, making it ideal for high-capacity industrial electrical installations.
The Teknomega PTB6030 is designed for terminating and distributing large conductors in high-current industrial electrical systems. Its robust construction provides secure, low-resistance electrical connections while simplifying installation and maintenance within modern switchboards and distribution equipment.
Ideal for OEM panel builders, electrical contractors and industrial engineers, the PTB6030 offers dependable performance in machine control systems, industrial automation, renewable energy installations and commercial power distribution applications.
| Current | 400 A |
|---|---|
| Phase | Single Phase |
| IP Rating | IP10 |
| Manufacturer | Teknomega |
| Series | PTB Power Terminal Blocks |
| Model | PTB6030 |
| Reference | PTB 400 |
| Product type | Power terminal block |
| Number of poles | 1 |
| Connections | 1 input / 1 output |
| Current rating | 400A |
| Stripped conductor | 25–185 mm² |
| Conductor with ferrule | 25–150 mm² |
| Rated insulation voltage (Ui) | 1000V AC / 1500V DC |
| Impulse withstand voltage (Uimp) | 8kV |
| Short-time withstand current (Icw) | 29.6kA (1 second) |
| Peak withstand current (Ipk) | 52.3kA |
| Protection rating | IP10 |
| Insulating body | PA6 UL94-V0 |
| Conductor material | Tinned copper |
| Clamp material | Galvanised steel and aluminium |
| Maximum operating temperature | +85°C |
| Colour | Grey |
| Mounting | DIN rail or panel mounting |
| Dimensions | 111 × 32 × 60 mm |
| Weight | 0.270kg |
| Standard | EN 60947-7-1 |
| HS Code | 85369095 |
The PTB6030 is a 400A power terminal block designed for terminating and distributing high-current conductors within industrial switchboards, electrical distribution panels and automation systems.
It accepts stripped conductors from 25–185 mm² and conductors with ferrules from 25–150 mm².
Yes. The tinned copper conductor block is designed to provide secure and reliable termination for both copper and aluminium conductors.
The PTB6030 has a rated insulation voltage of 1000V AC / 1500V DC with an 8kV impulse withstand voltage.
The terminal block can be mounted directly onto a DIN rail or fixed to a mounting panel inside an electrical enclosure.
Teknomega PTB power terminal blocks are trusted by panel builders, OEM manufacturers and electrical engineers for delivering reliable conductor termination and safe high-current power distribution in demanding industrial environments.
