Why Choose the IMO SCP222.5GREY Spring Clamp Terminal?

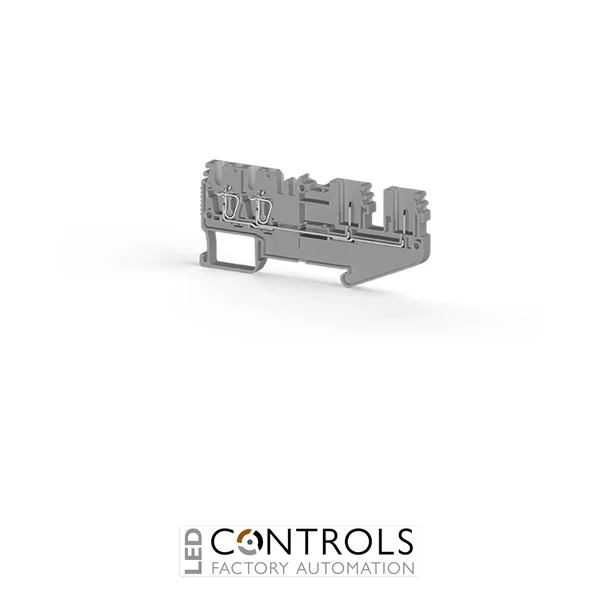

The IMO SCP222.5GREY is a compact spring clamp feed-through terminal block with double wire entry to two plugs designed for flexible electrical connections in industrial control panels, machinery and automation systems. As part of the IMO SCP spring clamp pluggable terminal series, it combines two wire connection points with two plug connections, providing a versatile four-position interface for modular industrial wiring.
The spring clamp connection system provides consistent conductor retention without conventional screw tightening, helping simplify installation and reduce ongoing maintenance. Its dual plug arrangement is particularly useful for modular machinery and control systems where electrical assemblies need to be connected, disconnected or replaced efficiently while maintaining an organised DIN-rail installation.
With a nominal conductor cross-section of 2.5 mm², a rated voltage of 500 V and a rated current of 24 A, the SCP222.5GREY provides dependable connectivity for industrial control and distribution circuits. Its compact 5.2 mm width and single-level design help maximise available DIN-rail space while accommodating solid and stranded conductors.
Key Advantages
- Versatile double wire entry to two plug connection configuration.
- 500 V rated voltage suitable for industrial control and distribution circuits.
- 24 A rated current for demanding electrical applications.
- 2.5 mm² nominal conductor cross-section.
- Spring clamp technology provides secure, maintenance-friendly conductor connections.
- Compact 5.2 mm width helps maximise available DIN-rail space.
Key Features
- IMO SCP spring clamp pluggable terminal series.
- Double wire entry to two plugs feed-through configuration.
- 500 V rated voltage.
- 24 A rated current.
- 2.5 mm² nominal conductor cross-section.
- Solid conductor range of 0.08–4 mm².
- Stranded conductor range of 0.14–2.5 mm².
- Suitable for AWG 28–12 conductors.
- 8–10 mm insulation stripping length.
- 5.2 mm terminal width for space-efficient installation.
- IP20 protection rating.
- Single-level DIN-rail feed-through terminal design.
Flexible Pluggable Connectivity for Industrial Wiring
Spring clamp terminals maintain consistent conductor contact using spring pressure rather than conventional screw tightening. This connection technology supports fast installation and dependable electrical contact while reducing the requirement for periodic retightening in industrial control panels, machinery and automation equipment.
The SCP222.5GREY combines two wire entries with two pluggable connections in a compact feed-through terminal. This arrangement provides greater connection flexibility for modular machinery and automation systems, allowing wiring assemblies and equipment modules to be connected or disconnected efficiently during installation, commissioning and maintenance.
Typical Applications
- Industrial control panels and electrical cabinets.
- PLC and automation system wiring.
- Machine building and OEM equipment.
- Modular and pluggable electrical assemblies.
- Distribution panels and junction boxes.
- High-density DIN-rail wiring installations.
