Why Choose the Teknomega ITB1000 Distribution Block?

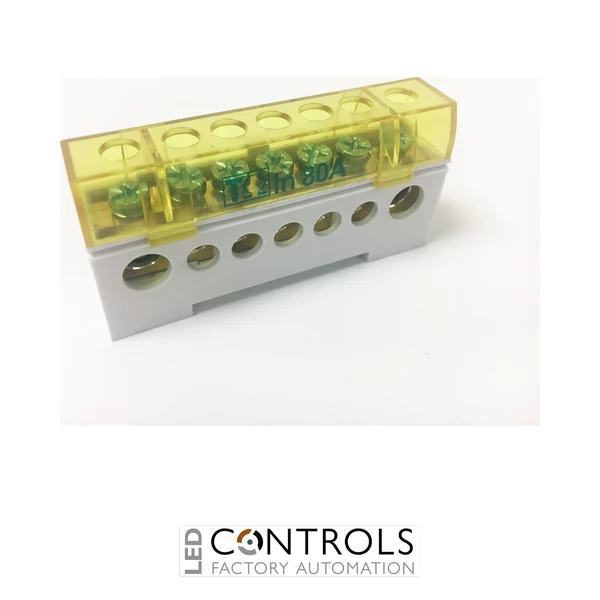

The Teknomega ITB1000 is a compact single-pole insulated distribution block designed for safe and organised electrical power distribution inside control panels, switchboards and distribution cabinets. Part of the Teknomega Ω BLOCK ITB insulated terminal block range, it provides a convenient common connection point for distributing power between multiple conductors.
The ITB1000 combines a flame-retardant PA 6 insulating body with a brass conduction block, galvanised steel screws and a transparent yellow polycarbonate protective cover. Its modular construction provides dependable conductor termination while helping protect live conductive components inside electrical assemblies.
With an 80 A rating, 7 connection points and an insulation voltage of 1000 V, the ITB1000 is well suited to low-voltage distribution applications where compact installation and organised wiring are important. It can be fitted directly onto DIN rail or installed using the compatible Teknomega ITB2000 support.
Key Advantages
- Compact 1-pole insulated distribution block for electrical panels.
- 80 A current rating for low-voltage power distribution.
- 7 connection points for organised conductor distribution.
- 1000 V insulation voltage.
- Brass conduction block provides reliable electrical conductivity.
- Direct DIN rail mounting simplifies panel installation.
- Can also be installed using the compatible ITB2000 support.
- Flame-retardant UL 94-V0 insulating body and protective cover.
- IP20B protection and halogen-free construction.
Key Features
- Teknomega Ω BLOCK ITB insulated unipolar terminal block.
- 1-pole, 7-way configuration.
- 80 A rated current.
- 1000 V insulation voltage.
- Two larger connection holes with 7.5 mm diameter.
- Five smaller connection holes with 5.5 mm diameter.
- PA 6 insulating block with UL 94-V0 flame-retardant classification.
- Transparent yellow polycarbonate cover, UL 94-V0.
- Brass conduction block with galvanised steel screws.
- IP20B degree of protection.
- Maximum continuous operating temperature of +105 °C.
- Compliant with EN 60947-7-1.
Reliable Power Distribution for Electrical Panels
Insulated distribution blocks such as the Teknomega ITB1000 provide a convenient method of distributing electrical power between multiple conductors within control panels and switchboards. A common conductive block creates an organised connection point, helping simplify wiring layouts and reduce the need for multiple individual junctions.
The ITB1000 combines seven connection points with different conductor capacities, allowing larger and smaller conductors to be accommodated within the same distribution block. Its DIN rail compatibility, transparent protective cover and compact 63 mm length make it particularly useful for professional panel-building applications where space and wiring accessibility are important.
Typical Applications
- Industrial control panels and switchboards.
- Electrical distribution cabinets.
- Low-voltage power distribution circuits.
- Automation and machinery control panels.
- Junction and marshalling enclosures.
- OEM electrical assemblies.
- Panel building and industrial wiring systems.
