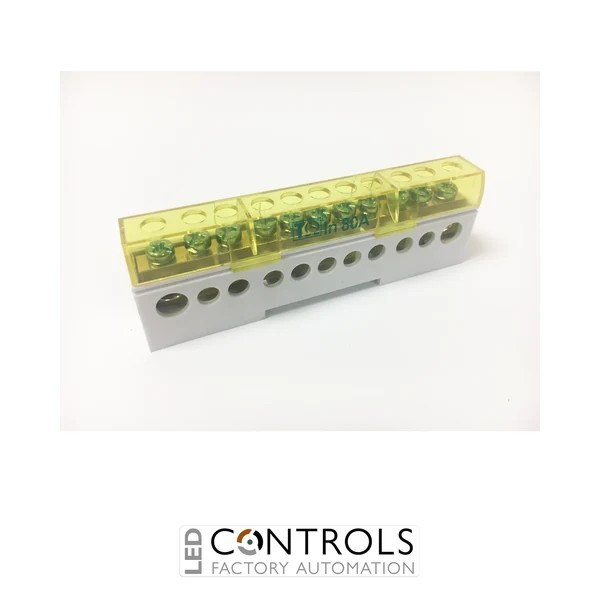

Teknomega ITB1005 single-pole insulated distribution terminal block rated at 80 A with 11 connection terminals, DIN rail mounting and 1000 V insulation for industrial electrical distribution.
£4.82
The Teknomega ITB1005 is a compact single-pole insulated distribution terminal block designed for safe, efficient and organised electrical power distribution within industrial switchboards, control panels and electrical cabinets. Part of the Teknomega ITB insulated terminal block range, it enables one incoming conductor to be distributed across multiple outgoing circuits while maintaining a neat and reliable wiring layout.
Manufactured with a PA6 UL94-V0 self-extinguishing insulating body, a brass conductor block and a transparent polycarbonate protective cover, the ITB1005 delivers dependable electrical performance while protecting live components. The transparent cover allows easy visual inspection during installation and maintenance.
Rated at 80 A with 11 connection terminals and a 1000 V nominal insulation voltage, the ITB1005 is ideal for industrial machinery, OEM equipment and low-voltage distribution systems where compact, reliable power distribution is required.
The Teknomega ITB1005 provides a safe and efficient method of distributing a single incoming supply to multiple outgoing conductors. It simplifies wiring, improves organisation within electrical enclosures and helps create reliable power distribution points for industrial equipment.
Its compact DIN rail mounted design makes it ideal for switchboard manufacturers, panel builders and OEM machine builders requiring dependable low-voltage power distribution with minimal installation space.
| Current | 80 A |
|---|---|
| Phase | Single Phase |
| Manufacturer | Teknomega |
| Series | ITB Insulated Unipolar Terminal Blocks |
| Model | ITB1005 |
| Reference | ITB 80-11 W |
| Product type | Single-pole insulated distribution terminal block |
| Rated current | 80 A |
| Number of poles | 1 pole |
| Connections | 11 terminals |
| Nominal insulation voltage | 1000 V |
| Main conductor size | 4 to 16 mm² (2.5 to 16 mm² with ferrules) |
| Secondary conductor size | 1.5 to 6 mm² |
| Main terminal tightening torque | 2 Nm |
| Secondary terminal tightening torque | 1.5 Nm |
| Insulating body | PA6 UL94-V0, Grey RAL 7035 |
| Conductor block | Brass |
| Cover | Transparent PC UL94-V0 |
| Protection rating | IP20B |
| Mounting type | DIN rail or ITB2000 support |
| Maximum operating temperature | +105 °C |
| Length | Approx. 95 mm |
| Weight | Approx. 0.07 kg |
| Standard | EN 60947-7-1 |
| HS Code | 73269098 |
The ITB1005 is used to distribute one incoming electrical supply to multiple outgoing conductors inside industrial control panels and switchboards.
The terminal block provides 11 connection terminals for distributing power to multiple circuits.
Yes. The ITB1005 is designed for direct DIN rail mounting and is also compatible with the ITB2000 support.
The main terminals accept conductors from 4 to 16 mm², while the secondary terminals accept conductors from 1.5 to 6 mm².
The Teknomega ITB1005 complies with EN 60947-7-1 for low-voltage terminal blocks.
Teknomega insulated distribution terminal blocks are trusted by electrical engineers and panel builders to create safe, organised and reliable wiring layouts in industrial electrical installations.
