Why Choose the Teknomega Omega ITB1015 Insulated Distribution Block?

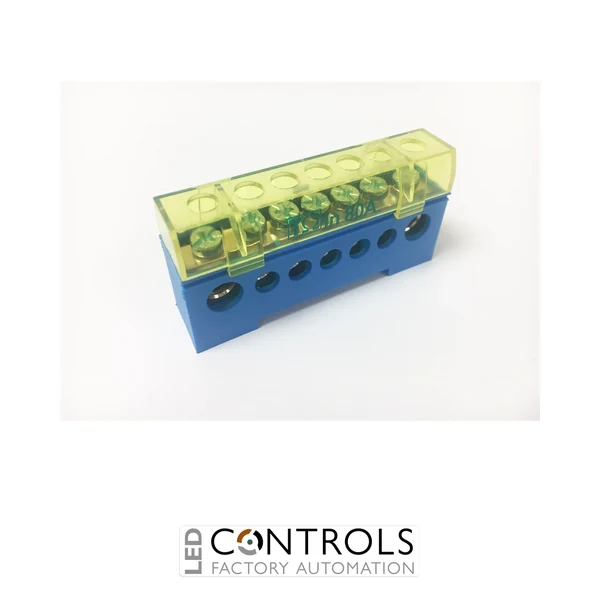

The Teknomega Omega ITB1015, reference ITB 80-7 B, is a compact 1-pole insulated distribution block rated at 80 A, designed for organised power distribution within electrical panels, switchboards and industrial control cabinets. Its 7 connection points allow conductors to be brought together through a common brass conductive block, providing a practical solution for distributing a single electrical potential to multiple circuits.
The ITB1015 features a blue PA6 insulating body with a transparent yellow polycarbonate protective cover. Both insulating components are rated UL 94 V-0, while the internal conductive block is manufactured from brass and the terminal screws from galvanised steel. The blue RAL 5012 body makes this variant particularly useful where colour-coded distribution is required within an electrical assembly.
Designed for direct installation on a DIN rail or use with the ITB2000 support, the ITB1015 combines compact dimensions with flexible conductor accommodation. Teknomega's current product specification lists an insulation voltage of 1000 V, IP20 protection, halogen-free construction and compliance with EN 60947-7-1.
Key Advantages
- 1-pole, 80 A distribution block for industrial panel wiring.
- 7 connection points for organised conductor distribution.
- Two larger terminals accommodate stripped conductors from 4–16 mm².
- Five smaller terminals accommodate stripped conductors from 2.5–6 mm².
- 1000 V insulation voltage according to the current Teknomega product specification.
- Direct mounting on a suitable DIN rail or installation using the optional ITB2000 support.
- PA6 UL 94 V-0 insulating body for robust electrical insulation.
- Transparent protective cover allows visual inspection while helping prevent accidental contact.
- IP20 protection for installation inside suitable electrical enclosures.
- Halogen-free construction and compliance with EN 60947-7-1.
Key Features
- Teknomega Omega unipolar distribution block.
- ITB 80-7 B reference.
- 80 A rated current.
- 1 pole.
- 7 ways: 2 larger + 5 smaller connection points.
- Blue RAL 5012 insulating body.
- PA6 UL 94 V-0 insulation material.
- Brass conductive block.
- Galvanised steel screws.
- Transparent yellow PC UL 94 V-0 protective cover.
- IP20 degree of protection.
- Halogen-free construction.
- Maximum continuous operating temperature of +105 °C.
- Compact 63 mm length.
Compact Single-Pole Power Distribution
The ITB1015 uses a common brass conductive block to electrically connect its seven terminal points. Two larger connections accept conductors up to 16 mm², while five smaller connections accommodate conductors up to 6 mm², allowing a larger conductor to be combined with multiple smaller circuit conductors in a compact distribution arrangement.
The insulated body and transparent protective cover make the block well suited to installation inside switchboards and control cabinets where safe, organised conductor distribution is required. Direct DIN rail mounting simplifies panel assembly, while Teknomega's optional ITB2000 support can also be used where the installation arrangement requires it.
Typical Applications
- Industrial control panel power distribution.
- Switchboards and electrical distribution cabinets.
- Automation and machinery control systems.
- Neutral or other single-potential conductor distribution.
- Machine building and OEM electrical equipment.
- Power distribution within industrial enclosures.
- Control and instrumentation cabinets.
- Compact DIN rail distribution assemblies.
