Why Choose the Teknomega ITB1025 Distribution Block?

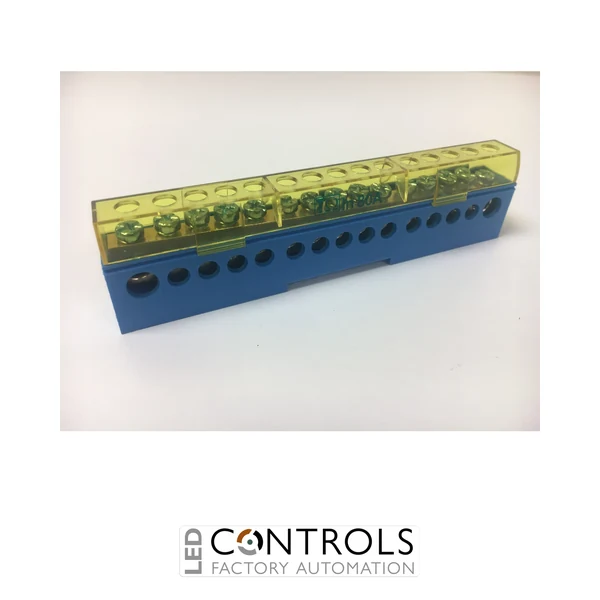

The Teknomega ITB1025, reference ITB 80-15 B, is a compact single-pole insulated distribution block designed for organised electrical power distribution within industrial switchboards, control panels and electrical cabinets. Rated at 80 A and providing 15 connection points, it enables an incoming conductor to be distributed efficiently across multiple outgoing circuits while maintaining a clean and structured wiring arrangement.
The ITB1025 combines a robust PA6 UL94-V0 insulating body with a brass conductor block and galvanised steel screws for dependable electrical and mechanical performance. A transparent yellow polycarbonate UL94-V0 protective cover provides IP20 protection while retaining visibility of the terminal area for inspection and maintenance.
Designed for straightforward panel installation, the ITB1025 can be fitted directly onto a DIN rail or using the Teknomega ITB2000 support. Its blue RAL 5012 insulating body makes it particularly suitable for neutral distribution, while an insulation voltage of 1000 V, halogen-free construction and a maximum continuous operating temperature of +105 °C make it a versatile solution for professional electrical installations.
Key Advantages
- 80 A rated current for dependable power distribution in industrial electrical panels.
- 15 connection points provide flexible distribution to multiple outgoing conductors.
- Compact single-pole insulated design helps maintain organised panel wiring.
- Direct DIN rail mounting simplifies installation inside switchboards and control cabinets.
- PA6 UL94-V0 insulating body and transparent PC UL94-V0 cover provide robust, self-extinguishing construction.
- 1000 V insulation voltage, IP20 protection and EN 60947-7-1 compliance support professional low-voltage installations.
Key Features
- Teknomega ITB series insulated unipolar distribution block.
- 1-pole configuration.
- 80 A rated current.
- 15 connection points comprising two larger and thirteen smaller terminal openings.
- Blue RAL 5012 insulating body.
- Brass conductor block for reliable electrical conductivity.
- Transparent yellow PC UL94-V0 protective cover.
- Direct mounting on DIN rail or installation using the ITB2000 support.
- IP20 degree of protection and halogen-free construction.
- Maximum continuous operating temperature of +105 °C.
Organised Power Distribution for Electrical Panels
Single-pole distribution blocks provide a convenient method of dividing one electrical potential across multiple conductors without creating complex groups of individual terminal connections. The Teknomega ITB1025 provides 15 connection points in a compact 125 mm-long enclosure, making it particularly useful where panel space and organised wiring are important considerations.
The blue RAL 5012 body makes the ITB1025 well suited to neutral distribution, although its application should always follow the electrical design and identification requirements of the installation. Multiple ITB blocks can also be arranged using compatible mounting hardware where separate phase, neutral or other distribution potentials are required within industrial switchboards and control systems.
Typical Applications
- Neutral distribution inside industrial switchboards.
- Electrical control panels and automation systems.
- Machine building and OEM electrical equipment.
- Power distribution inside low-voltage electrical cabinets.
- Industrial panel building and switchgear assemblies.
- Compact multi-circuit wiring distribution systems.
