Why Choose the Teknomega ITB1035 Distribution Block?

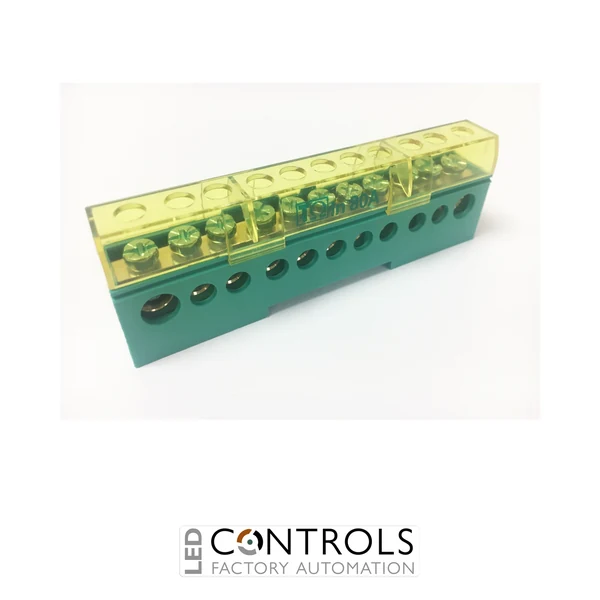

The Teknomega ITB1035 is a compact single-pole insulated distribution block designed for safe and organised electrical power distribution inside industrial control panels, switchboards and electrical cabinets. Part of the Teknomega Ω BLOCK ITB insulated terminal block range, it provides 11 connection points for distributing a common electrical potential across multiple conductors.
Manufactured with a flame-retardant PA 6 UL 94-V0 insulating body, brass conductor block, galvanised steel screws and a transparent yellow polycarbonate cover, the ITB1035 provides robust construction for professional panel-building applications. The green RAL 6024 insulating body provides clear visual identification within organised electrical assemblies.
With an 80 A rating, 11 connection points and an insulation voltage of 1000 V, the ITB1035 provides a compact solution for low-voltage distribution systems. It can be mounted directly onto DIN rail or installed on the compatible Teknomega ITB2000 support, providing installation flexibility in control and distribution panels.
Key Advantages
- Compact 1-pole insulated distribution block for professional electrical panels.
- 80 A rated current for low-voltage power distribution.
- 11 connection points for organised conductor distribution.
- 1000 V insulation voltage.
- Two larger and nine smaller connection points accommodate different conductor sizes.
- Direct DIN rail mounting simplifies installation inside electrical cabinets.
- Compatible with the Teknomega ITB2000 support.
- Flame-retardant UL 94-V0 insulating body and protective cover.
- IP20B protection helps protect against accidental contact with live components.
- Halogen-free construction for professional electrical installations.
Key Features
- Teknomega Ω BLOCK ITB insulated unipolar terminal block.
- 1-pole, 11-way configuration.
- 80 A rated current.
- 1000 V insulation voltage.
- Two larger connection holes with 7.5 mm diameter.
- Nine smaller connection holes with 5.5 mm diameter.
- PA 6 insulating body with UL 94-V0 flame-retardant classification.
- Green RAL 6024 insulating body.
- Transparent yellow polycarbonate UL 94-V0 protective cover.
- Brass conductor block with galvanised steel screws.
- IP20B degree of protection.
- Maximum continuous operating temperature of +105 °C.
- Compliant with EN 60947-7-1.
Reliable Power Distribution for Electrical Panels
Insulated distribution blocks such as the Teknomega ITB1035 provide a convenient common connection point for multiple conductors within control panels and switchboards. The brass conductor block electrically connects the terminals while the insulating housing and protective cover help provide an organised and protected wiring arrangement.
The ITB1035 combines two larger 7.5 mm connection holes with nine 5.5 mm connection holes, allowing different conductor cross-sections to be terminated on the same single-pole block. Its compact 95 × 31 × 15 mm format and DIN rail compatibility make it particularly useful for panel builders seeking efficient use of enclosure space.
Typical Applications
- Industrial control panels and switchboards.
- Electrical distribution cabinets.
- Low-voltage power distribution circuits.
- Protective conductor distribution arrangements.
- Automation and machinery control panels.
- Junction and marshalling enclosures.
- OEM electrical assemblies and machine building.
- Professional DIN rail wiring systems.
