Why Choose the Teknomega RPB0995 Omega Distribution Block?

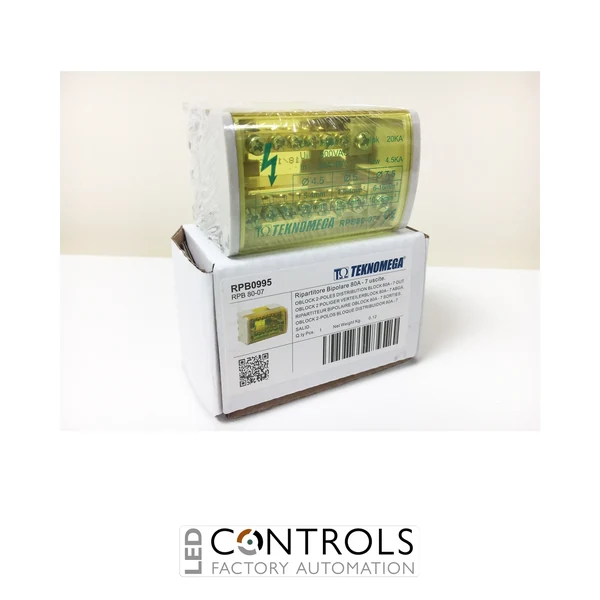

The Teknomega RPB0995 is a compact 2-pole power distribution block designed to simplify power branching and conductor organisation inside electrical switchboards, control panels and industrial distribution assemblies. Part of the Teknomega Omega RPB distribution block range, it is rated at 80 A and provides seven outgoing connection points for efficient distribution of an incoming electrical supply.
Designed for professional low-voltage panel building, the RPB0995 combines a PA 6 UL 94-V0 insulating body with brass conductive components and steel terminal screws. A manually removable transparent polycarbonate protective screen helps reduce the risk of accidental contact while maintaining convenient access during installation and maintenance.
The RPB0995 supports stripped incoming conductors from 10–25 mm², or 6–16 mm² when fitted with ferrules, while its seven outgoing terminals accommodate conductors up to 4 mm². Quick DIN rail attachment, compact 66 × 46 × 51 mm dimensions and compliance with EN 60947-7-1 make it a practical distribution solution for industrial control and power panels.
Key Advantages
- Compact 2-pole distribution block for organised electrical power branching.
- 80 A rated current for industrial power distribution applications.
- Seven outgoing connections provide flexible distribution to multiple circuits.
- Quick attachment to DIN rail simplifies panel installation.
- PA 6 UL 94-V0 insulating body provides robust self-extinguishing insulation.
- Brass conductive components provide dependable electrical performance.
- Removable transparent protective screen helps protect against accidental contact.
- IP10 protection when correctly installed.
- Halogen-free construction suitable for modern electrical panel assemblies.
- Compliant with EN 60947-7-1.
Key Features
- Teknomega Omega RPB bipolar distribution block.
- 2-pole configuration.
- 80 A rated current.
- Seven outputs.
- 500 V insulation voltage.
- 4.5 kA short-time withstand current (Icw).
- 20 kA peak withstand current (Ipk).
- Incoming stripped conductor capacity of 10–25 mm².
- Incoming ferruled conductor capacity of 6–16 mm².
- Seven outgoing connections accepting conductors up to 4 mm².
- PA 6 UL 94-V0 grey RAL 7035 insulating body.
- Transparent yellow PC UL 94-V2 protective screen.
- Brass conductive block with steel screws.
- Quick mounting onto DIN rail.
- IP10 degree of protection.
Efficient Power Distribution for Electrical Panels
Distribution blocks provide an organised method of dividing an incoming electrical supply between several outgoing conductors. The Teknomega RPB0995 combines two-pole distribution with seven outputs, allowing panel builders to create compact and clearly arranged power distribution circuits without relying on multiple individual connection points.
Its DIN rail mounting system supports efficient panel assembly, while the PA 6 insulating housing, brass conductive components and removable protective screen provide a robust connection platform for industrial electrical installations. With an 80 A current rating and multiple conductor capacities, the RPB0995 is well suited to control cabinets, switchboards, machinery and OEM electrical assemblies.
Typical Applications
- Industrial electrical control panels.
- Low-voltage switchboards and distribution boards.
- Factory automation systems.
- Machine building and OEM electrical equipment.
- Power branching within control cabinets.
- Industrial machinery power distribution.
- Electrical distribution enclosures.
- Commercial and industrial panel building.
