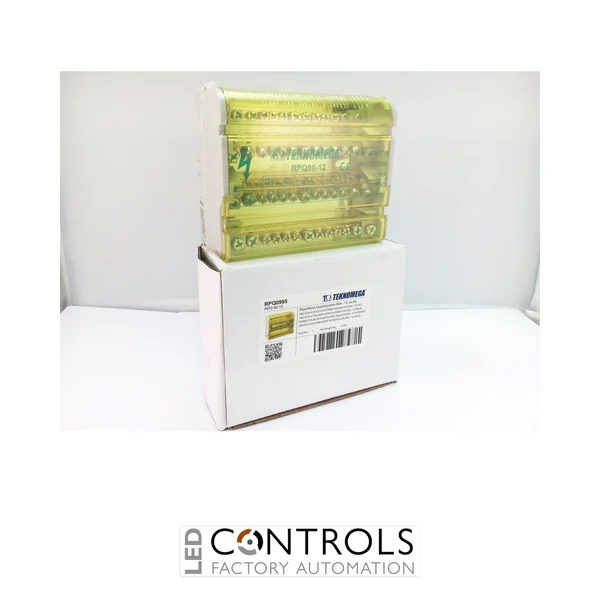

Why Choose the Teknomega RPQ0995 Omega 4 Pole Distribution Block?
The Teknomega RPQ0995 is a high-performance 4 pole distribution block designed for safe and efficient power distribution in industrial control panels, switchboards and electrical installations. Part of the Teknomega RPQ Omega distribution block series, it provides a compact solution for distributing incoming power to multiple outgoing circuits while maintaining reliable electrical organisation.
Designed for professional panel builders and industrial electrical systems, the RPQ0995 features a robust construction with a PA 6 UL 94-V0 halogen-free insulating body, a high-conductivity brass conduction block and a removable transparent protective screen. Its DIN rail mounting capability allows quick and efficient installation in modern electrical enclosures.
With a 80 A rated current, 4 pole configuration, 12 output connections and a 1000 V insulation voltage rating, the Teknomega RPQ0995 is ideal for industrial automation panels, machinery systems and low-voltage power distribution applications.
Key Advantages
- Compact 4 pole distribution block for industrial electrical panels.
- 80 A rated current for reliable power distribution.
- 12 output terminals for efficient circuit branching.
- PA 6 UL 94-V0 halogen-free insulating body for safe electrical isolation.
- Quick hook-up installation on standard DIN rails.
- Transparent removable protection screen improves installation safety and inspection access.
Key Features
- Teknomega RPQ Omega distribution block series.
- 4 pole distribution block design.
- 80 A rated current.
- 12 output connections.
- 1000 V nominal insulation voltage.
- Brass conductor block for reliable electrical performance.
- PA 6 UL 94-V0 grey RAL 7035 insulating body.
- PC UL 94-V2 transparent yellow removable protection screen.
- IP10 protection rating.
- Compliant with EN 60947-7-1.
Reliable Power Distribution for Industrial Systems
Distribution blocks provide a safe and organised method of splitting incoming electrical power into multiple outgoing circuits. The Teknomega RPQ0995 combines compact construction with high-quality materials to support dependable operation in industrial electrical assemblies.
The RPQ series is designed for electrical engineers, panel builders and OEM manufacturers requiring efficient power distribution solutions for control cabinets, machinery and low-voltage installations.
Typical Applications
- Industrial control panels.
- Electrical switchboards.
- Automation cabinets.
- Machinery power distribution systems.
- OEM electrical assemblies.
- Low-voltage industrial installations.
