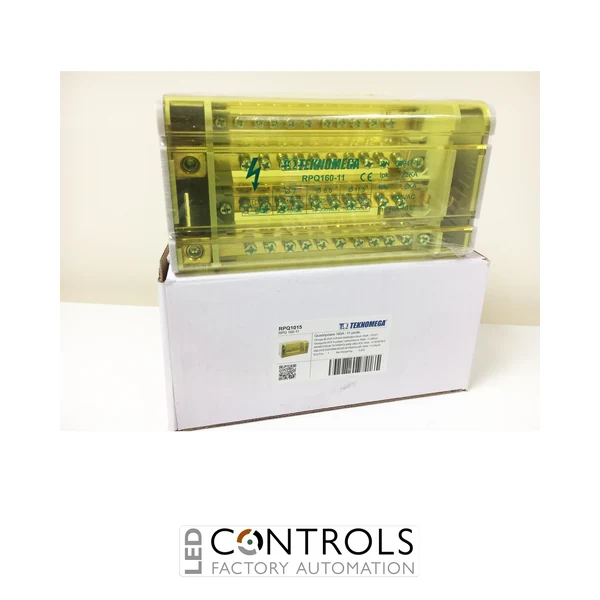

Why Choose the Teknomega RPQ1015 Omega 4 Pole Distribution Block?
The Teknomega RPQ1015 is a heavy-duty 4-pole power distribution block designed for safe, efficient and organised electrical power distribution within industrial control panels, switchboards and OEM machinery. Part of the Teknomega RPQ four-pole distribution block series, it provides a robust solution for distributing incoming power across multiple outgoing conductors.
Rated at 160 A, the RPQ1015 provides 11 outputs and separate incoming connections for each pole. Its construction combines a self-extinguishing PA6 UL 94-V0 insulating body, forged brass conductive blocks and steel terminal screws, providing dependable mechanical and electrical performance in demanding low-voltage installations.
The RPQ1015 features a manually removable transparent yellow polycarbonate protective screen and an IP10 protection rating to help protect against accidental contact. Quick DIN-rail mounting and straightforward front-entry wiring make the unit particularly suitable for professional panel builders requiring a compact 160 A distribution solution.
Key Advantages
- Heavy-duty 4-pole distribution block rated at 160 A.
- Provides 11 outgoing connections for organised power distribution.
- Separate incoming connections simplify multi-pole wiring.
- Forged brass conductive blocks provide reliable electrical performance.
- Self-extinguishing PA6 UL 94-V0 insulating body.
- Transparent removable protective screen helps protect against accidental contact.
- Quick DIN-rail mounting simplifies control-panel installation.
- Front-entry configuration provides convenient access for wiring and maintenance.
Key Features
- Teknomega RPQ 160-11 distribution block.
- 4-pole configuration.
- 160 A rated current.
- 11 outputs.
- Incoming conductor capacity up to 50 mm².
- Multiple outgoing conductor sizes supported up to 35 mm².
- IP10 degree of protection.
- PA6 UL 94-V0 grey insulating body.
- Brass conductive blocks with steel terminal screws.
- Transparent yellow polycarbonate protective screen.
- Maximum continuous operating temperature of +85 °C.
- Quick mounting onto DIN rail.
- Compliant with EN 60947-7-1.
Reliable Four-Pole Power Distribution
Distribution blocks such as the Teknomega RPQ1015 allow a high-current incoming electrical supply to be divided efficiently between multiple outgoing conductors. Its four-pole construction makes it particularly suitable for three-phase and neutral distribution arrangements, while the combination of three larger and eight smaller outputs provides flexibility for connecting circuits with different conductor sizes.
The RPQ1015 is engineered for straightforward panel wiring, with separate inputs, forged brass conductors and convenient front access to the connection points. Its self-extinguishing insulating structure, removable protective screen and quick DIN-rail mounting make it a practical solution for switchboards, industrial control panels and machinery distribution systems.
Typical Applications
- Industrial electrical control panels.
- Three-phase and neutral power distribution.
- Switchboards and distribution assemblies.
- Industrial machinery and automation cabinets.
- OEM electrical panel construction.
- Power distribution to multiple outgoing circuits.
- DIN-rail mounted low-voltage electrical systems.
