Why Choose the WAGO 2201-1201 2-Conductor Through Terminal Block?

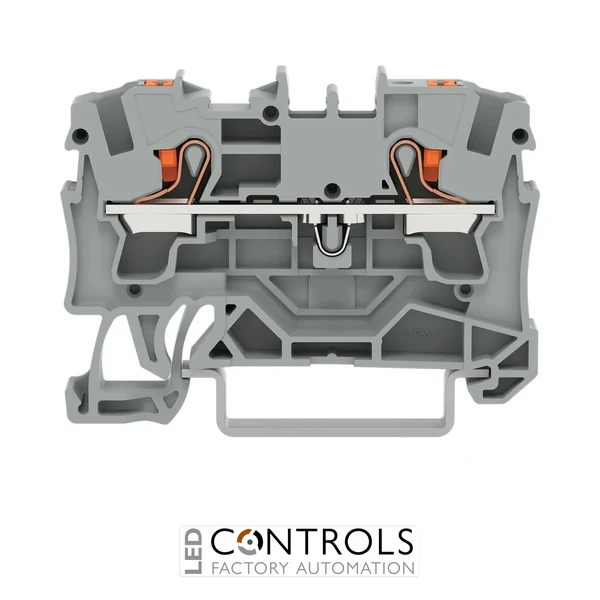

The WAGO 2201-1201 is a compact 2-conductor through terminal block with push-button from the TOPJOB® S 2201 Series. Designed around WAGO's Push-in CAGE CLAMP® connection technology, it provides fast, secure conductor termination for industrial control panels, machinery and automation systems while requiring only 4.2 mm of DIN rail width.
The terminal has a nominal cross-section of 1.5 mm² and accepts solid and fine-stranded copper conductors from 0.25 to 2.5 mm². Suitable solid conductors and ferruled conductors can be pushed directly into the terminal, while the integrated push-button provides convenient spring-clamp actuation for conductor insertion and removal.
Rated at up to 800 V IEC, the 2201-1201 also incorporates a test port, front-entry wiring and both side and centre marking facilities. The grey housing mounts on standard 35 × 7.5 mm or 35 × 15 mm DIN rails and is suitable for Ex e II applications. This product is supplied in a pack of 100.
Key Advantages
- Push-in CAGE CLAMP® technology enables fast and dependable conductor termination.
- Integrated push-buttons simplify operation of the spring connection.
- Only 4.2 mm wide for high-density DIN rail installations.
- Accepts solid and fine-stranded conductors from 0.25–2.5 mm².
- Integrated test port supports convenient electrical testing and commissioning.
- Suitable for Ex e II applications and supplied in a pack of 100 for panel production.
Key Features
- WAGO TOPJOB® S 2201 Series terminal block.
- 2-conductor feed-through configuration.
- Push-in CAGE CLAMP® connection technology.
- Push-button actuation for convenient conductor handling.
- 1.5 mm² nominal cross-section.
- 800 V IEC rated voltage.
- Integrated test port.
- Front-entry wiring.
- Side and centre marking facilities.
- Grey PA66 polyamide housing with UL 94 V-0 flammability classification.
Fast and Compact Push-In Terminal Wiring
Push-in CAGE CLAMP® technology allows suitable solid and ferruled conductors to be inserted directly into the terminal, reducing wiring time during control-panel production. For other supported conductor types, the integrated push-button provides straightforward operation of the spring clamp without the need to manipulate a conventional screw terminal.
At only 4.2 mm wide, the WAGO 2201-1201 helps maximise connection density on the DIN rail while retaining useful features including a test port and dual marking positions. This combination makes it well suited to modern industrial panels where fast installation, reliable spring-pressure connections and efficient use of cabinet space are priorities.
Typical Applications
- Industrial electrical control panels.
- Machine building and factory automation.
- PLC and control-system wiring.
- Signal and power distribution circuits.
- Ex e II terminal installations.
- Switchgear and electrical distribution cabinets.
