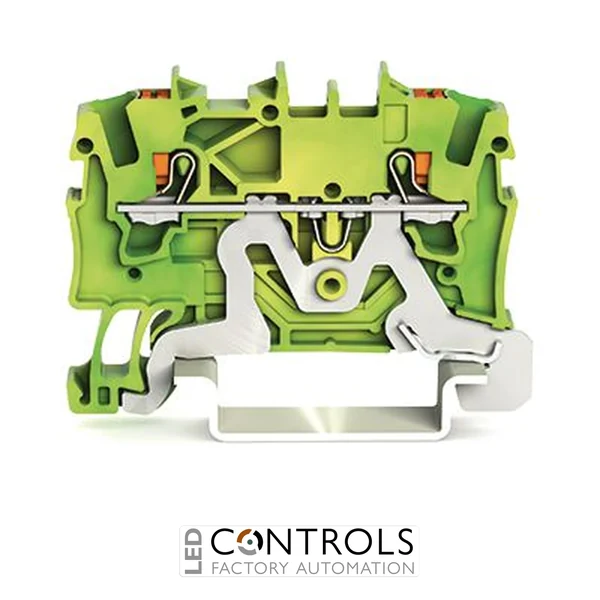

Why Choose the WAGO 2201-1207 TOPJOB S 2-Conductor Ground Terminal Block?
The WAGO 2201-1207 is a 2-conductor protective earth ground terminal block from the TOPJOB® S 2201 Series, designed for reliable PE conductor termination in industrial control panels, machinery and electrical distribution systems. Featuring Push-in CAGE CLAMP® connection technology with push-button actuation, it combines fast conductor installation with secure spring-pressure termination in a compact green-yellow DIN rail format.
With a nominal cross-section of 1.5 mm², the 2201-1207 accepts solid and fine-stranded copper conductors from 0.25 to 2.5 mm². Suitable solid conductors from 0.75 to 2.5 mm² can be inserted directly using push-in termination, while the integrated push-buttons provide convenient spring actuation for conductor installation and removal.
The terminal is only 4.2 mm wide and incorporates an integrated test port, side and centre marking positions and two jumper slots. It mounts on standard 35 × 7.5 mm and 35 × 15 mm DIN rails, is suitable for specified Ex e II applications, and is supplied in a pack of 100.
Key Advantages
- Purpose-designed protective earth terminal block for PE conductor connections.
- Push-in CAGE CLAMP® technology provides reliable spring-pressure termination.
- Integrated push-buttons simplify conductor insertion, removal and rewiring.
- Supports copper conductors from 0.25 to 2.5 mm².
- Direct push-in termination for suitable solid conductors from 0.75 to 2.5 mm².
- Integrated test port supports convenient testing and commissioning.
- Compact 4.2 mm width supports high-density terminal assemblies.
- Suitable for specified Ex e II applications.
Key Features
- WAGO TOPJOB S 2201 Series.
- 2-conductor ground / protective earth terminal block.
- 1.5 mm² nominal cross-section.
- Push-in CAGE CLAMP® connection technology.
- Push-button actuation.
- 2 connection points.
- 1 potential.
- 1 level.
- Front-entry wiring.
- 2 jumper slots.
- Integrated test port.
- Side and centre marking positions.
- 9 to 11 mm stripping length.
- Suitable for Ex e II applications.
- Green-yellow protective earth identification.
- PA66 polyamide insulating body.
Reliable Protective Earth Wiring with Push-in CAGE CLAMP®
The WAGO 2201-1207 is designed specifically for protective earth conductor termination. Its green-yellow identification clearly distinguishes the PE connection within a terminal row, while mounting on the DIN rail provides the mechanical and electrical arrangement required of a ground terminal block in a correctly designed installation.
Push-in CAGE CLAMP® technology allows suitable solid conductors to be inserted directly, while the integrated push-buttons provide straightforward actuation of the spring clamp for other conductor types and conductor removal. The built-in test port and side and centre marking positions further support efficient commissioning, identification and maintenance of professional terminal assemblies.
Typical Applications
- Protective earth connections in industrial control panels.
- Machine-building and OEM electrical equipment.
- Automation and process control cabinets.
- Electrical distribution and switchgear assemblies.
- DIN rail-mounted equipment grounding systems.
- Specified Ex e II terminal installations.
