Why Choose the WAGO 2201-1401 TOPJOB S 4-Conductor Through Terminal Block?

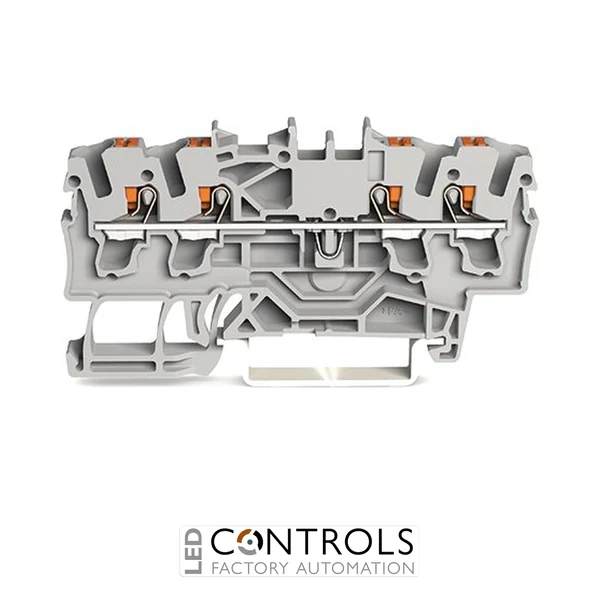

The WAGO 2201-1401 is a compact 4-conductor through terminal block with push-buttons from the TOPJOB® S 2201 Series. Designed for 1.5 mm²-class wiring, this grey DIN rail terminal provides four conductor connection points on a common electrical potential, making it ideal for distributing a circuit to multiple conductors within industrial control panels, machinery and automation systems.
WAGO's Push-in CAGE CLAMP® connection technology allows suitable solid and ferruled conductors to be inserted directly, while the integrated push-buttons provide convenient spring-clamp actuation for other conductor types and for conductor removal. This combination supports quick installation and dependable spring-pressure connections without the routine retightening associated with screw terminals.
The 2201-1401 has a nominal cross-section of 1.5 mm² and accommodates copper conductors from 0.25 to 2.5 mm². Its slim 4.2 mm width, four connection points, integrated testing capability and standard DIN rail mounting make it a space-efficient solution for high-density terminal assemblies. It is supplied in a pack of 100.
Key Advantages
- 4-conductor design allows one electrical potential to be distributed across four conductor connections.
- Push-in CAGE CLAMP® technology provides fast and reliable spring-pressure termination.
- Integrated push-buttons simplify conductor insertion, removal and maintenance.
- Supports copper conductors from 0.25 to 2.5 mm².
- Direct push-in connection for suitable solid and ferruled conductors reduces wiring time.
- Slim 4.2 mm terminal width supports high-density panel layouts.
- Integrated testing provision assists commissioning and troubleshooting.
- Supplied in a convenient pack of 100 for panel building and production applications.
Key Features
- WAGO TOPJOB S 2201 Series.
- 4-conductor through terminal block.
- 1.5 mm² nominal cross-section.
- Push-in CAGE CLAMP® connection technology.
- Push-button actuation.
- 4 conductor connection points.
- 1 electrical potential.
- Single-level terminal design.
- Front-entry wiring.
- Suitable for copper conductors.
- Conductor range from 0.25 to 2.5 mm².
- 9 to 11 mm stripping length.
- Integrated testing capability.
- Marking facilities for organised terminal identification.
- 4.2 mm-wide housing.
- Grey insulating body.
Compact Four-Conductor Potential Distribution with Push-In Technology
The WAGO 2201-1401 provides four conductor connection points sharing one electrical potential. This configuration allows an incoming circuit to be distributed to several outgoing conductors directly at the terminal block, reducing the need for additional external splicing and helping create compact, structured terminal assemblies.
Push-in CAGE CLAMP® technology enables suitable conductors to be inserted directly into the clamping unit, while the integrated push-buttons provide an intuitive means of opening the spring connection when required. The result is a versatile terminal suitable for initial panel assembly as well as subsequent testing, maintenance and rewiring.
Typical Applications
- Industrial control and automation panels.
- PLC input and output wiring assemblies.
- Machine-building and OEM electrical equipment.
- Control and signal potential distribution.
- Building automation and electrical installations.
- High-density DIN rail terminal block assemblies.
