Why Choose the WAGO 2202-1201 TOPJOB S 2-Conductor Through Terminal Block?

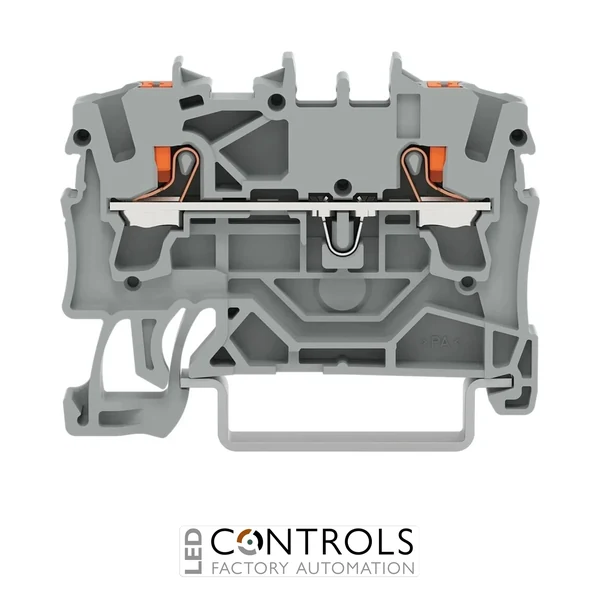

The WAGO 2202-1201 is a 2-conductor through terminal block with push-button from the WAGO TOPJOB S 2202 Series. Designed for a nominal conductor cross-section of 2.5 mm², it provides a compact, screwless solution for connecting two copper conductors on a common electrical potential in industrial control panels, machinery and electrical distribution systems.
Featuring WAGO's proven Push-in CAGE CLAMP® connection technology, the 2202-1201 allows suitable solid and ferruled conductors to be inserted directly, while the integrated push-button provides convenient actuation for connecting or removing other conductor types. The spring-pressure connection maintains consistent contact force without requiring routine screw retightening.
The terminal is rated at 24 A and 800 V according to IEC/EN data, with a rated impulse voltage of 8 kV. It also features an integrated test port, side and centre marking, two jumper slots and suitability for Ex e II applications, making it a versatile choice for demanding industrial installations.
Key Advantages
- Compact 2-conductor through terminal block for reliable conductor-to-conductor connections.
- Push-in CAGE CLAMP® technology enables fast, secure and maintenance-free termination.
- Integrated push-button provides intuitive actuation of the spring connection.
- 24 A rated current and 800 V rated voltage according to IEC/EN data.
- Integrated test port and two jumper slots support testing and potential distribution.
- Suitable for Ex e II applications and standard industrial installations.
Key Features
- WAGO TOPJOB S 2202 Series rail-mounted terminal block.
- 2-conductor through / feed-through configuration.
- 2.5 mm² nominal cross-section.
- Push-in CAGE CLAMP® connection technology.
- Push-button actuation for convenient conductor handling.
- Integrated test port for measurement and commissioning.
- Two jumper slots for compatible TOPJOB S jumper accessories.
- Side and centre marking for clear circuit identification.
- Front-entry conductor wiring.
- Compatible with DIN 35 × 15 mm and DIN 35 × 7.5 mm rails.
- Grey PA66 housing with UL 94 V-0 flammability classification.
- Supplied in a pack of 100 pieces.
Reliable Push-In Connections for Industrial Wiring
The WAGO 2202-1201 combines direct push-in termination with convenient push-button actuation. Suitable rigid and ferruled conductors can be inserted directly into the Push-in CAGE CLAMP® connection, while the push-button opens the spring clamp for straightforward termination or removal of flexible conductors. This helps reduce installation time while maintaining consistent spring pressure on the conductor.
At only 5.2 mm wide, the terminal supports high-density DIN rail assemblies without sacrificing connection capability. The integrated test port, two jumper slots and side and centre marking positions further support efficient potential distribution, commissioning, troubleshooting and long-term circuit identification.
Typical Applications
- Industrial control panels and electrical cabinets.
- Machine building and factory automation systems.
- PLC and process-control wiring.
- Switchgear and electrical distribution assemblies.
- Railway, transportation and marine electrical systems where applicable approvals are required.
- Hazardous-area installations requiring terminal blocks suitable for Ex e II applications.
