Why Choose the WAGO 2202-1204 TOPJOB S 2-Conductor Through Terminal Block?

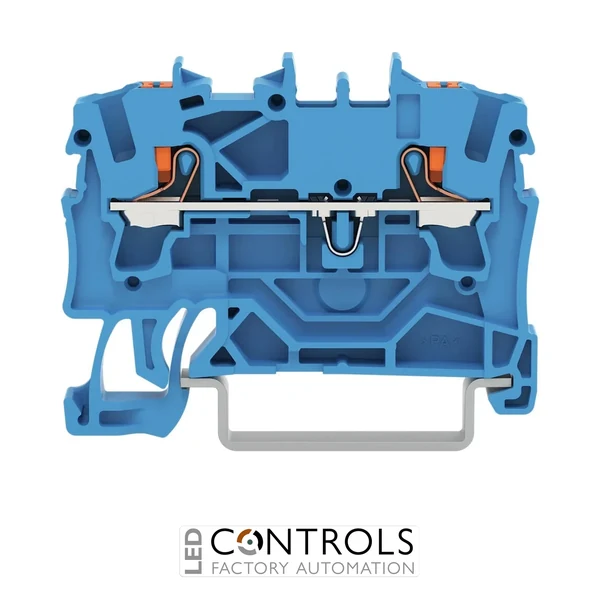

The WAGO 2202-1204 is a blue 2-conductor through terminal block with push-button from the WAGO TOPJOB S 2202 Series. Designed for a nominal conductor cross-section of 2.5 mm², it provides a compact, screwless solution for connecting two copper conductors on a common electrical potential in industrial control panels, machinery and electrical distribution systems.
Featuring WAGO's proven Push-in CAGE CLAMP® connection technology, the 2202-1204 enables suitable solid and ferruled conductors to be inserted directly, while the integrated push-button provides convenient actuation when terminating or removing stranded conductors. The spring-pressure connection maintains reliable contact force without the routine retightening associated with conventional screw terminals.
The terminal is rated at 24 A and 800 V according to IEC/EN data and accommodates conductors from 0.25 to 4 mm². It also incorporates a test port, supports side and centre marking, is suitable for Ex e II and Ex i applications, and mounts onto standard 35 × 15 mm and 35 × 7.5 mm DIN rails.
Key Advantages
- Compact 2-conductor through terminal block for conductor-to-conductor connections.
- Push-in CAGE CLAMP® technology provides fast, secure screwless termination.
- Integrated push-button simplifies connection and removal of stranded conductors.
- 24 A rated current and 800 V rated voltage according to IEC/EN data.
- Integrated test port supports convenient commissioning and troubleshooting.
- Suitable for Ex e II and Ex i applications, subject to applicable approvals and installation requirements.
Key Features
- WAGO TOPJOB S 2202 Series rail-mounted terminal block.
- 2-conductor through / feed-through configuration.
- 2.5 mm² nominal conductor cross-section.
- Push-in CAGE CLAMP® spring-pressure connection.
- Push-button actuation for convenient conductor handling.
- Integrated test port for electrical measurement and diagnostics.
- Side and centre marking capability.
- Front-entry conductor wiring.
- One level and one electrical potential.
- Compatible with DIN 35 × 15 mm and DIN 35 × 7.5 mm rails.
- Blue housing for circuit identification.
- Supplied in a pack of 100 pieces.
Reliable Push-In Connections for Industrial Wiring
The WAGO 2202-1204 combines direct push-in termination with convenient push-button operation. Suitable solid and ferruled conductors can be pushed directly into the Push-in CAGE CLAMP® connection, while the push-button allows straightforward actuation of the spring clamp for stranded conductors and conductor removal. This design supports efficient panel wiring while maintaining consistent spring pressure on the conductor.
At only 5.2 mm wide, the terminal is well suited to high-density DIN rail installations. Its integrated test port and marking provisions simplify commissioning, troubleshooting and long-term circuit identification, while the blue housing provides clear visual differentiation within organised terminal assemblies.
Typical Applications
- Industrial control panels and electrical cabinets.
- Machine building and factory automation systems.
- PLC and process-control wiring.
- Switchgear and electrical distribution assemblies.
- Building automation and control installations.
- Hazardous-area installations requiring terminal blocks suitable for Ex e II or Ex i applications.
