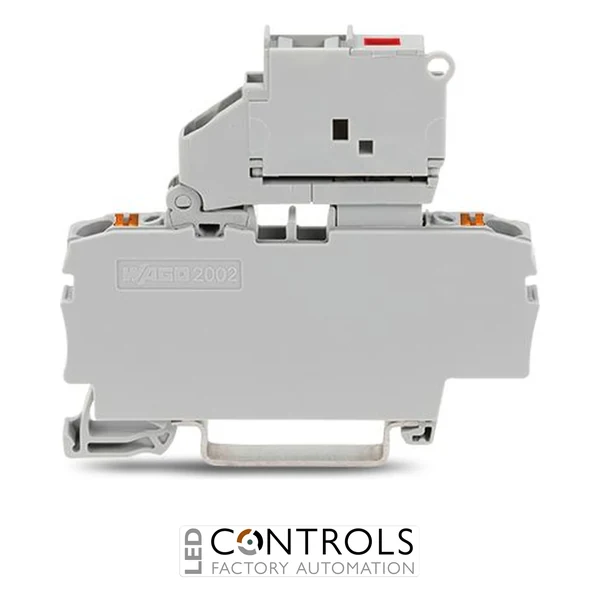

WAGO 2202-1611/1000-541 is a grey TOPJOB S 2-conductor 2.5 mm² fused disconnect terminal with Push-in CAGE CLAMP connection technology and a pivoting holder for 5 x 20 mm miniature metric fuses, supplied in a pack of 50.
£4.33
The WAGO 2202-1611/1000-541 is a 2-conductor fused disconnect terminal block from the TOPJOB® S range, designed to combine conductor termination, circuit disconnection and fuse protection within a compact DIN rail assembly. Featuring a pivoting fuse holder for 5 × 20 mm miniature metric fuses, this grey terminal provides convenient protection and servicing of individual control, signal and auxiliary circuits.
WAGO Push-in CAGE CLAMP® connection technology provides dependable spring-pressure conductor termination while allowing suitable conductors to be connected quickly. The pivoting fuse carrier gives convenient access to the fuse and also provides a practical means of opening the protected circuit for servicing, testing or fuse replacement.
Designed around a 2.5 mm² nominal cross-section, the terminal accommodates copper conductors up to 4 mm² depending on conductor type and termination method. Its fuse circuit is rated at 250 V and 6.3 A according to IEC/EN 60947-7-3, and this product is supplied in a pack of 50 for panel-building and production requirements.
The WAGO 2202-1611/1000-541 integrates a 5 × 20 mm fuse position directly into the terminal assembly, allowing individual circuits to be protected without installing a separate panel-mounted fuse holder. The pivoting carrier makes the fuse accessible for inspection and replacement while also allowing the protected circuit path to be opened during servicing.
Push-in CAGE CLAMP® technology provides a vibration-resistant spring-pressure connection for the field conductors. This combination of push-in wiring and accessible fuse protection makes the terminal particularly useful where compact installation, straightforward maintenance and individual circuit protection are required within a DIN rail terminal row.
| HS Code | 85369095 |
|---|---|
| Country of Manufacture | Germany |
| Manufacturer | WAGO |
| Series | TOPJOB S / 2202 Series |
| Model | 2202-1611/1000-541 |
| Manufacturer part number | 2202-1611/1000-541 |
| Product type | Fused disconnect terminal block |
| Terminal configuration | 2-conductor |
| Terminal function | Fused / disconnect |
| Connection technology | Push-in CAGE CLAMP® |
| Fuse holder | Pivoting / swivelling |
| Fuse format | 5 × 20 mm miniature metric fuse |
| Nominal cross-section | 2.5 mm² |
| Conductor cross-section range | 0.25 to 4 mm² depending on conductor type |
| Stripping length | 10 to 12 mm |
| Number of conductor connection points | 2 |
| Number of levels | 1 |
| IEC/EN nominal voltage | 250 V |
| IEC/EN rated current | 6.3 A |
| Rated impulse withstand voltage | 6 kV |
| Overvoltage category | III |
| Pollution degree | 3 |
| Applicable terminal standard | IEC/EN 60947-7-3 |
| Terminal width | 6.2 mm |
| DIN rail compatibility | 35 × 7.5 mm and 35 × 15 mm |
| Mounting type | DIN-35 / TH35 rail |
| Colour | Grey |
| Insulating material | Polyamide |
| Pack quantity | 50 pieces |
The WAGO 2202-1611/1000-541 is a 2-conductor fused disconnect terminal block from the TOPJOB S range, combining Push-in CAGE CLAMP® conductor connections with a pivoting 5 × 20 mm fuse holder.
The terminal is designed for 5 × 20 mm miniature metric fuses, a widely used fuse format for control, auxiliary and electronic circuits.
The fuse-terminal circuit is rated at 250 V and 6.3 A according to IEC/EN 60947-7-3, with a rated impulse withstand voltage of 6 kV.
The terminal has a 2.5 mm² nominal cross-section and accommodates copper conductors from 0.25 to 4 mm² depending on conductor construction and termination method, with a stripping length of 10 to 12 mm.
Yes. Opening the pivoting fuse carrier interrupts the fused current path, providing convenient disconnection for fuse replacement, testing and servicing in accordance with the installation requirements.
This product is supplied as a pack of 50 terminals, making it suitable for panel-building, OEM manufacturing and larger DIN rail installation projects.
WAGO TOPJOB S fused terminal blocks combine spring-pressure conductor connection technology with compact and accessible circuit protection, helping panel builders, automation engineers and machine manufacturers create organised, serviceable and dependable DIN rail assemblies.
