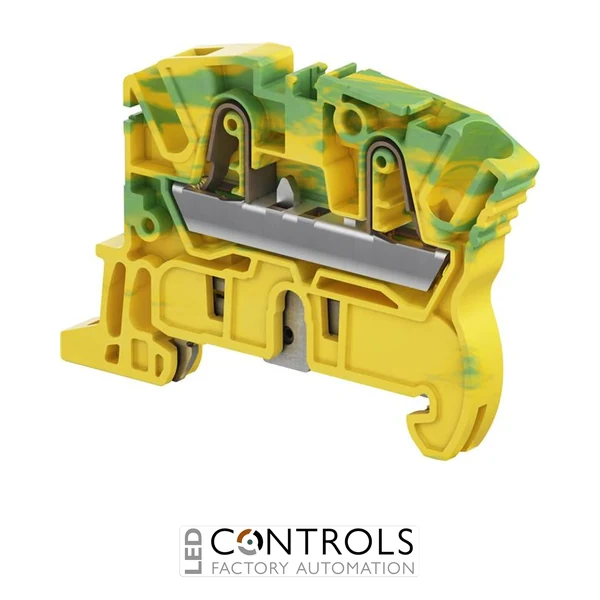

TE Connectivity ZK4-PE push-in earth terminal block with 4 mm² conductor capacity and PI-Spring connection technology for reliable DIN rail protective earth connections.
£3.05
The TE Connectivity ZK4-PE (part number 1SNK706150R0000) is a reliable 4 mm² DIN rail mounted push-in earth terminal block designed for safe and efficient protective conductor connections in industrial electrical installations. As part of the TE Connectivity ENTRELEC SNK PI-Spring terminal block series, it provides a compact screwless solution for control panels, automation systems and power distribution applications.
This earth terminal uses a PI-Spring connection technology to provide secure, maintenance-friendly wiring without the need for screw tightening. The green-yellow housing provides clear protective earth identification, while the compact design enables efficient use of DIN rail space in modern electrical cabinets.
With a 4 mm² rated cross-section, 6 mm spacing and compatibility with TH35 DIN rails, the ZK4-PE is suitable for reliable grounding and equipotential bonding applications where fast installation and dependable electrical performance are required.
Earth terminal blocks provide an essential safety function by creating a reliable protective conductor connection between electrical equipment and the grounding system. The TE Connectivity ZK4-PE uses spring connection technology to maintain consistent contact pressure while reducing the risk of connection errors caused by incorrect tightening.
Designed for industrial automation and electrical control applications, the ZK4-PE combines compact DIN rail installation with robust mechanical and electrical performance. Its screwless design helps speed up panel assembly while supporting reliable long-term operation in demanding environments.
| Manufacturer | TE Connectivity |
|---|---|
| Series | ENTRELEC SNK PI-Spring |
| Model | ZK4-PE |
| Product type | Push-in earth terminal block |
| Part number | 1SNK706150R0000 |
| Terminal function | Ground / Protective earth |
| Connection type | PI-Spring connection |
| Rated cross-section | 4 mm² |
| Number of levels | 1 |
| Number of connections | 2 |
| Spacing | 6 mm |
| Flexible conductor capacity | 0.5–4 mm² |
| Rigid conductor capacity | 0.5–6 mm² |
| Impulse withstand voltage | 8000 V |
| Dielectric test voltage | 2200 V |
| Short-time withstand current | 480 A for 1 s |
| Protection rating | IP20 |
| Mounting type | DIN rail mounting |
| Compatible DIN rails | TH35-7.5 and TH35-15 according to IEC 60715 |
| Housing material | Polyamide |
| Flammability rating | UL94 V-0 |
| Dimensions (H × W × D) | 62.7 × 6 × 41.2 mm |
| Weight | 12.6 g |
| Operating temperature | -55 to +110 °C |
The ZK4-PE is a DIN rail mounted earth terminal block used to provide protective earth connections in industrial electrical installations.
The terminal supports conductors up to 4 mm² for flexible wiring and up to 6 mm² for rigid conductors.
The ZK4-PE uses a PI-Spring push-in connection system for fast and secure screwless wiring.
The terminal is designed for standard TH35-7.5 and TH35-15 DIN rails according to IEC 60715.
The terminal has a green-yellow housing to provide clear protective earth identification.
TE Connectivity ENTRELEC SNK terminal blocks are widely used by electrical engineers and panel builders to create safe, reliable and efficient industrial connection systems.
