TE Connectivity ENTRELEC ZS4-RD 1SNK505062R0000 is a red 4 mm² feed-through screw clamp DIN rail terminal block with a 5.2 mm pitch, rated at 32 A and 1000 V IEC for industrial electrical connections.
£0.96

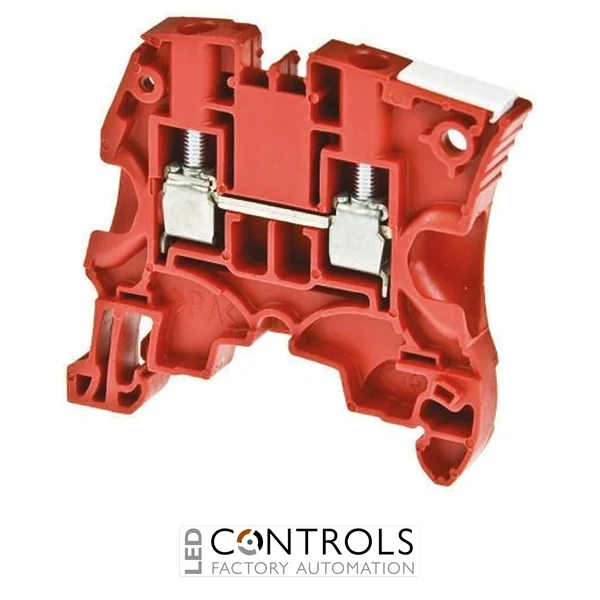

The TE Connectivity ENTRELEC ZS4-RD 1SNK505062R0000 is a compact 4 mm² feed-through screw clamp terminal block designed for reliable conductor connections in control panels, distribution equipment and industrial automation systems. Part of the established ENTRELEC SNK Series, this version features a distinctive red polyamide housing and provides two connection positions on a single level.
The ZS4-RD combines a space-saving 5.2 mm terminal pitch with conductor capacity up to 4 mm². Its screw clamp connection provides a secure and familiar termination method for rigid and flexible conductors, while the DIN rail mounting design enables straightforward installation alongside other SNK Series terminal blocks.
Rated at up to 32 A and 1000 V IEC, the 1SNK505062R0000 is engineered for demanding electrical applications. It offers an operating temperature range of -55 to 110 °C, IP20 protection and a UL 94V-0 flammability rating, providing a robust solution for professional industrial wiring installations.
Feed-through terminal blocks provide a convenient method of joining conductors through a control panel or electrical enclosure while maintaining an organised DIN rail installation. The TE Connectivity ENTRELEC ZS4-RD uses established screw clamp technology to create secure conductor connections while its compact 5.2 mm pitch helps reduce the amount of DIN rail space required.
With support for conductors up to 4 mm², a 32 A IEC current rating and 1000 V IEC voltage rating, the 1SNK505062R0000 is suitable for a broad range of power distribution, control and automation wiring. The red housing also makes the terminal easy to distinguish within mixed-colour terminal assemblies where visual circuit identification is required.
| Manufacturer | TE Connectivity / ENTRELEC |
|---|---|
| Series | ENTRELEC SNK / ZS |
| Model | ZS4-RD |
| Manufacturer part number | 1SNK505062R0000 |
| Product type | Screw clamp terminal block |
| Terminal function | Feed-through |
| Connection type | Screw clamp |
| Rated cross-section | 4 mm² |
| Colour | Red |
| Number of positions | 2 |
| Number of circuits | 1 |
| Number of levels | 1 |
| Product spacing / pitch | 5.2 mm |
| IEC current rating | 32 A |
| IEC voltage rating | 1000 V |
| UL current rating | 20 A |
| CSA current rating | 20 A |
| UL / CSA operating voltage rating | 600 V |
| IEC impulse withstand voltage | 8000 V |
| Dielectric withstand voltage | 2200 V |
| Short-time withstand current at 1 s | 480 A |
| Power loss | 1 W |
| Conductor capacity - 1 rigid conductor | 0.2 to 4 mm² |
| Conductor capacity - 1 flexible conductor | 0.22 to 4 mm² |
| Conductor capacity - 2 rigid conductors | 0.2 to 1.5 mm² |
| Conductor capacity - 2 flexible conductors | 0.2 to 1.5 mm² |
| AWG conductor range | Up to 24 to 12 AWG depending on conductor type |
| Wire stripping length | 10.5 mm |
| Tool size | 3.5 mm |
| Mounting | DIN rail |
| DIN rail types | TH35-7.5 / TH35-15 |
| Housing material | Polyamide |
| Operating temperature | -55 to 110 °C |
| Installation temperature | -5 to 40 °C |
| Ingress protection | IP20 |
| UL flammability rating | UL 94V-0 |
| Height | 53 mm |
| Width / spacing | 5.2 mm |
| Depth | 47.3 mm |
| Weight | 8.8 g |
| EAN | 3472595050628 |
It is a 4 mm² feed-through screw clamp terminal block designed for connecting conductors in DIN rail-mounted electrical control panels, machinery and industrial automation systems.
The ZS4-RD is rated at 32 A and 1000 V according to IEC specifications. Its UL and CSA ratings include 20 A current and up to 600 V operating voltage.
The terminal has a rated cross-section of 4 mm² and can accept a single rigid conductor from 0.2 to 4 mm² or a single flexible conductor from 0.22 to 4 mm², depending on conductor preparation.
The ZS4-RD is designed for DIN rail mounting and is compatible with TH35-7.5 and TH35-15 mounting rails.
The 1SNK505062R0000 has an operating temperature range of -55 to 110 °C, an IP20 ingress protection rating and a UL 94V-0 flammability rating.
TE Connectivity ENTRELEC SNK terminal blocks provide panel builders, automation engineers and maintenance teams with compact, dependable DIN rail connection solutions for professional industrial electrical installations.
