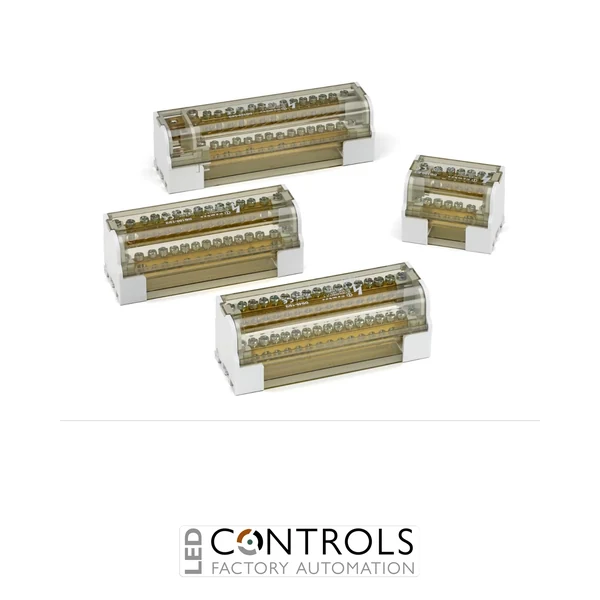

Cembre 2843722 DB100-6/2 two-pole power distribution block rated at 100 A, with six outgoing connections and DIN rail or panel mounting.
£11.25
The Cembre 2843722 DB100-6/2 is a compact and reliable two-pole power distribution block designed for organised electrical power distribution within control panels, switchboards and industrial automation systems. Part of the professional Cembre DBLOCK series, it allows two incoming conductors to supply multiple outgoing connections while maintaining clear separation between the two poles.
Rated for an operational current of 100 A, the DB100-6/2 provides six outgoing connections, arranged as three outputs per pole. Its direct-clamping terminals, captive screws and chamfered conductor entry holes simplify installation while helping create secure and stable electrical connections.
The conductive components are manufactured from high-quality brass, while the robust insulating construction incorporates PA6.6 and polycarbonate materials. A transparent protective cover allows convenient visual inspection of the terminations, and the block can be installed on a standard 35 mm DIN rail or mounted directly onto a panel.
Two-pole distribution blocks provide an organised method of dividing two incoming electrical conductors across several outgoing circuits. This arrangement is commonly used for phase and neutral distribution, DC positive and negative conductors, or other applications requiring two electrically separated distribution paths.
The Cembre DB100-6/2 combines compact dimensions with direct-clamping terminals and clearly separated poles. This helps reduce wiring congestion, improve panel accessibility and simplify future inspection or maintenance work.
| Manufacturer | Cembre |
|---|---|
| Series | DBLOCK DB/2 |
| Model | DB100-6/2 |
| Manufacturer part number | 2843722 |
| Product type | Two-pole power distribution block |
| Rated operational current | 100 A |
| Number of poles | 2 |
| Number of outgoing connections | 6 |
| Outgoing connections per pole | 3 |
| Maximum input conductor capacity | Up to 25 mm², depending on conductor type |
| Output conductor capacity | Multiple conductor sizes up to 6 mm², depending on conductor type |
| Clamping type | Direct clamping |
| Clamping element | Slotted captive screw |
| Conductor body material | Brass |
| Insulating materials | Polyamide PA6.6 and polycarbonate |
| Cover colour | Transparent |
| Flammability rating | UL94 V0 |
| Ingress protection | IP20 |
| Mounting type | 35 mm DIN rail or panel mounting |
| Applicable standard | EN 60947-7-1 |
| Approvals | CE and UKCA |
| HS Code | 85369010 |
| Country of Manufacture | China |
It is used to distribute two incoming electrical conductors across multiple outgoing circuits within industrial control panels and electrical distribution systems.
The Cembre DB100-6/2 has a rated operational current of 100 A.
The distribution block provides six outgoing connections, arranged as three connections for each pole.
It can be installed on a standard 35 mm DIN rail or mounted directly onto a panel using suitable fixings.
Yes. The distribution block has a transparent protective cover that allows the conductor terminations to be inspected without fully dismantling the unit.
Cembre DBLOCK distribution blocks are widely used by panel builders, electrical contractors and automation engineers to create organised, secure and dependable power distribution systems.
