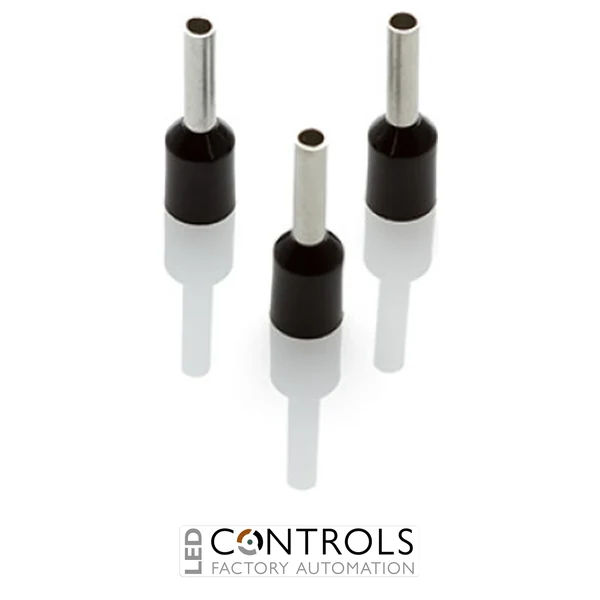

Why Choose the Partex CEF1518F-C Black Insulated Cord End Ferrule?
The Partex CEF1518F-C is a single insulated cord end ferrule designed for terminating flexible stranded electrical conductors in industrial control panels, electrical distribution equipment and automation systems. Featuring a 1.5 mm² nominal conductor cross-section, 18 mm barrel length and black insulated collar, this ferrule provides a practical solution for preparing electrical conductors for compatible terminal connections.
As part of the Partex insulated cord end ferrule range, the CEF1518F-C helps contain individual wire strands during termination. Its metal barrel is designed to be crimped onto a correctly prepared conductor, while the insulated collar provides a defined conductor entry point and a neat transition between the cable insulation and the terminated end. The extended 18 mm barrel is particularly useful where the receiving terminal is designed to accommodate this ferrule length.
Supplied in a convenient pack of 100 ferrules, the Partex CEF1518F-C is suitable for electricians, control-panel builders, machinery manufacturers and industrial maintenance engineers requiring consistent cable preparation and professional conductor termination.
Key Advantages
- 1.5 mm² conductor size for compatible flexible stranded electrical wiring.
- 18 mm barrel length for terminal connections designed to accept an extended ferrule barrel.
- Black insulated collar provides a convenient visual reference during conductor preparation.
- Pack of 100 ferrules offers a practical quantity for electrical installation, assembly and maintenance work.
- Helps keep individual conductor strands together during insertion into compatible electrical terminals.
- Crimp termination supports consistent conductor preparation when correctly installed.
- Reduces the likelihood of loose or stray strands at the termination point.
- Provides a neat and organised finish to flexible conductor terminations.
- Suitable for industrial control panels, automation equipment and electrical distribution systems.
- Partex manufacturer identification supports accurate product selection and repeat purchasing.
Key Features
- Partex CEF1518F-C single insulated cord end ferrule.
- 1.5 mm² nominal conductor cross-section.
- 18 mm barrel length.
- Black insulation colour.
- 100 ferrules per pack.
- Single-conductor ferrule configuration.
- Crimp-style electrical conductor termination.
- Insulated collar at the conductor entry.
- Metal ferrule barrel for containing stranded conductor ends.
- Designed for compatible flexible stranded electrical conductors.
- Suitable for terminal blocks and electrical connection points designed to accept ferrules.
- Useful for control-panel assembly, cable preparation and industrial maintenance.
Professional Cable Termination for Industrial Control and Automation
Flexible stranded conductors are commonly used in industrial control panels, motor control systems, PLC cabinets and automation equipment. When these conductors are connected to suitable electrical terminals, a correctly selected cord end ferrule helps maintain the conductor strands together, providing a defined termination profile and reducing the likelihood of stray strands during installation.
The Partex CEF1518F-C is specified for 1.5 mm² single-conductor termination and features an 18 mm barrel. During installation, the conductor is stripped to the appropriate length, inserted fully into the ferrule and secured using a compatible ferrule crimping tool. The black insulated collar provides a defined transition at the conductor entry, while the crimped barrel can be inserted into a suitable electrical terminal.
The 18 mm barrel length is an important selection consideration, particularly when working with terminal blocks or equipment connections with specific insertion-depth requirements. The receiving terminal must accept the finished ferrule dimensions, and the conductor construction, stripping length, crimp profile and terminal tightening requirements should be checked against the relevant manufacturers' instructions. A single cord end ferrule should not be used to terminate two conductors unless that arrangement is specifically approved.
Typical Applications
- Industrial electrical control-panel manufacturing.
- PLC cabinets and automation system wiring.
- Motor control centres and associated control circuits.
- Electrical distribution boards and control enclosures.
- Terminal block connections for 1.5 mm² flexible stranded conductors.
- Variable speed drive and motor control equipment wiring where compatible.
- OEM machinery and electrical equipment manufacturing.
- Industrial electrical maintenance and refurbishment.
- Workshop cable preparation and wiring harness assembly.
- Electrical connections requiring a compatible 18 mm ferrule barrel.
