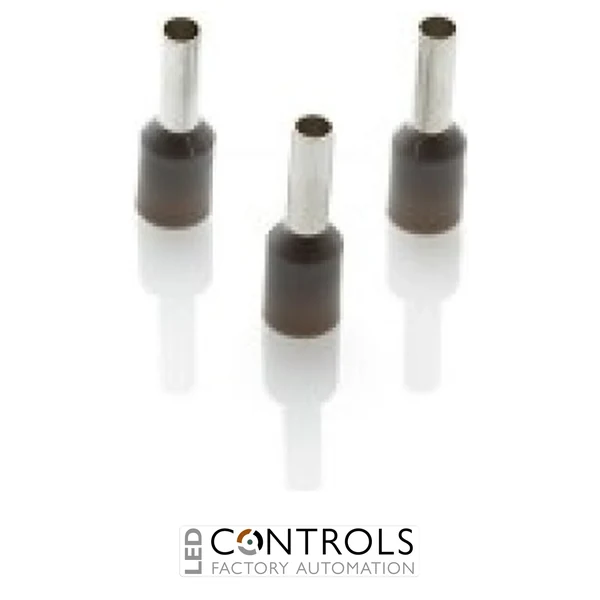

Why Choose the Partex CEF2512F-C 2.5 mm² Insulated Cord End Ferrule?
The Partex CEF2512F-C is a professional-quality single insulated cord end ferrule designed to provide neat, secure terminations for flexible stranded electrical conductors. Featuring a 2.5 mm² conductor size, 12 mm metal barrel length and grey insulated collar, this bootlace ferrule is ideal for electrical control panels, industrial machinery and power distribution equipment where reliable conductor connections are essential.
As part of the Partex CEF insulated cord end ferrule range, the CEF2512F-C provides an effective way to consolidate individual copper wire strands into a compact termination. When correctly crimped using a suitable ferrule crimping tool, it helps prevent stray conductor strands, supports consistent terminal connections and simplifies insertion into compatible screw clamp and spring clamp terminals.
With its 2.5 mm² conductor capacity and extended 12 mm barrel, the CEF2512F-C is particularly suitable for electrical installations requiring a longer conductor termination sleeve. The grey insulating collar provides a clearly identifiable conductor entry point, while the convenient pack of 100 makes these ferrules a practical choice for electrical contractors, panel builders and industrial maintenance engineers.
Key Advantages
- Reliable single insulated cord end ferrule for flexible stranded copper conductors.
- 2.5 mm² conductor size suitable for industrial control and electrical distribution wiring.
- 12 mm metal barrel length for applications requiring an extended termination sleeve.
- Grey insulated collar for guided conductor insertion and a professional finish.
- Helps prevent loose wire strands and conductor damage during terminal installation.
- Supports secure and consistent crimped electrical connections when correctly installed.
- Suitable for compatible screw clamp and spring clamp terminal connections.
- Helps simplify repetitive wiring tasks during control panel assembly.
- Convenient pack of 100 ferrules for professional electrical installation and maintenance.
Key Features
- Partex CEF insulated cord end ferrule series.
- Single conductor ferrule designed for terminating one flexible stranded wire.
- 2.5 mm² nominal conductor cross-sectional area.
- 12 mm conductive metal barrel for extended conductor termination.
- Grey insulated plastic collar for easy conductor insertion.
- Metal sleeve designed for compression using a compatible ferrule crimping tool.
- Helps maintain conductor strand integrity during electrical termination.
- Suitable for control panels, industrial machinery and electrical equipment.
- Designed for use with crimping tools supporting 2.5 mm² ferrules.
- 100 ferrules per pack for professional installation requirements.
Reliable Crimped Connections for Industrial Electrical Wiring
Flexible stranded copper conductors are widely used in electrical control panels, industrial machinery and electrical distribution systems. When these conductors are inserted directly into certain terminals, individual strands can spread, become displaced or suffer damage during installation. The Partex CEF2512F-C insulated cord end ferrule provides a practical solution by enclosing the stripped conductor strands within a crimpable metal sleeve.
During installation, the conductor insulation is stripped to the appropriate length, the exposed strands are inserted fully into the ferrule barrel and the sleeve is compressed using a compatible crimping tool. This creates a compact termination that helps keep the copper strands together and provides a consistent connection surface for compatible electrical terminals.
The 12 mm barrel length provides an extended termination sleeve for applications where the receiving terminal requires a longer insertion length. Its grey insulated collar helps guide the conductor into the ferrule and provides a neat transition between the wire insulation and the crimped metal barrel.
The 2.5 mm² conductor capacity makes this ferrule a practical option for industrial control wiring, auxiliary circuits and compatible electrical distribution connections. Supplied in a pack of 100, it is suitable for both planned installation projects and ongoing electrical maintenance.
For reliable electrical performance, the ferrule must be matched to the conductor cross-sectional area and crimped using the correct tool profile. The completed termination must also be compatible with the receiving terminal manufacturer's specifications, including its permitted ferrule size and insertion depth.
Typical Applications
- Electrical control panel wiring and conductor termination.
- Industrial machinery and machine control circuits.
- DIN rail terminal blocks and electrical cabinet assembly.
- Electrical distribution and auxiliary power wiring.
- Motor control panels and associated control equipment.
- PLC cabinets and industrial automation installations.
- Switchgear and electrical equipment manufacturing.
- OEM electrical assembly and production.
- Electrical maintenance, repair and refurbishment.
- Professional termination of 2.5 mm² flexible stranded copper conductors.
