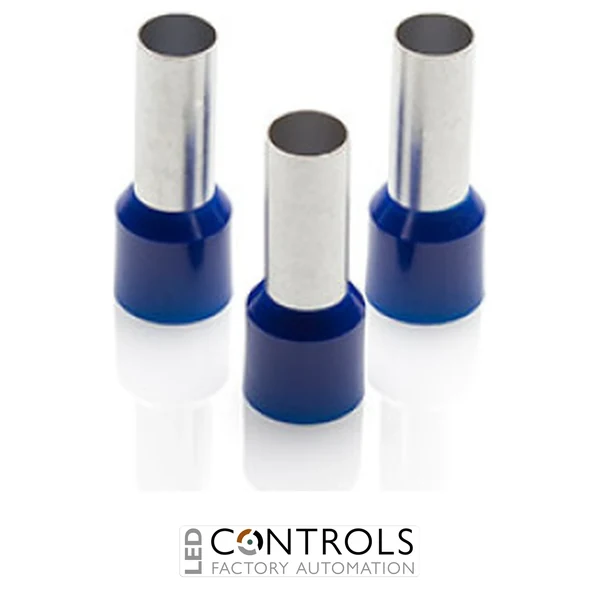

Why Choose the Partex CEF50020F-C Blue Insulated Cord End Ferrule?
The Partex CEF50020F-C is a professional single insulated cord end ferrule designed for the secure and consistent termination of large-section flexible stranded electrical conductors. Featuring a 50 mm² nominal conductor capacity, a 20 mm metal barrel length and blue insulation, this ferrule provides a practical solution for industrial electrical installations, power distribution equipment, switchgear assemblies and heavy-duty control panel wiring.
As part of the Partex CEF insulated cord end ferrule range, the CEF50020F-C helps prevent individual conductor strands from spreading during electrical termination. Its tubular metal barrel gathers the stripped conductor strands into a consolidated termination, while the insulated entry collar assists with conductor insertion and supports neat, organised cable preparation during installation, inspection and maintenance.
With its 50 mm² conductor size, 20 mm crimp barrel and convenient pack of 100 ferrules, the Partex CEF50020F-C is particularly suitable for electrical contractors, industrial panel builders, switchgear manufacturers and maintenance engineers requiring reliable and repeatable cable terminations in professional electrical installations.
Key Advantages
- 50 mm² conductor capacity designed for large-section flexible stranded electrical cables.
- 20 mm metal barrel length provides a defined termination section for compatible electrical terminals.
- Blue insulated collar supports convenient identification and organised electrical wiring.
- Helps prevent individual conductor strands from spreading during terminal installation.
- Creates a compact, consolidated conductor end for compatible electrical connections.
- Crimp termination supports secure mechanical retention when installed using appropriate tooling.
- Insulated entry collar assists with conductor insertion and positioning during cable preparation.
- Suitable for industrial power distribution, electrical switchgear and machinery wiring.
- Pack of 100 ferrules provides a practical quantity for professional installation, electrical maintenance and panel assembly.
Key Features
- Partex CEF50020F-C single insulated cord end ferrule.
- 50 mm² nominal conductor cross-sectional area.
- 20 mm metal barrel length.
- Blue insulated entry collar.
- Single-conductor ferrule configuration for individual cable termination.
- Tubular metal barrel designed to contain flexible stranded conductor ends.
- Insulated collar assists with conductor insertion and termination identification.
- Designed for installation using a ferrule crimping tool and die suitable for 50 mm² conductors.
- Suitable for compatible electrical terminals that accept ferrule-terminated large-section conductors.
- Practical termination accessory for industrial electrical cabinets, switchgear and distribution equipment.
- 100 ferrules per pack.
Reliable Large-Section Cable Termination for Industrial Electrical Systems
Insulated cord end ferrules such as the Partex CEF50020F-C provide an effective method of preparing flexible stranded electrical conductors for installation into compatible terminals. When a flexible conductor is stripped, its individual strands can separate during handling and insertion. A correctly crimped ferrule gathers these strands within a tubular metal sleeve, creating a consolidated conductor end and reducing the risk of loose strands around the connection.
The 20 mm metal barrel provides a defined termination section for electrical connections designed to accommodate this ferrule length. The blue insulated collar helps guide the conductor into the ferrule and supports visual identification during installation. These characteristics make the CEF50020F-C a practical choice for power distribution equipment, industrial switchgear and electrical assemblies where consistent cable preparation is important.
For dependable performance, the ferrule must be matched to a 50 mm² flexible stranded conductor and crimped using tooling specifically suitable for the conductor and ferrule size. The receiving terminal must also be approved for the finished ferrule dimensions, conductor cross-section and intended electrical duty. Correct stripping, crimping, insertion depth and terminal tightening are essential for achieving a reliable connection. The blue collar identifies the ferrule variant and does not independently designate the conductor as neutral.
Typical Applications
- Industrial electrical power distribution assemblies.
- Low-voltage switchgear and distribution board wiring.
- Industrial control panels using large-section flexible conductors.
- Motor control centres and machinery electrical installations.
- Power supply and auxiliary distribution connections.
- Electrical cabinet and equipment interconnection wiring.
- OEM electrical equipment and switchgear manufacturing.
- Industrial maintenance, refurbishment and electrical repair work.
- Professional cable preparation and electrical panel assembly.
