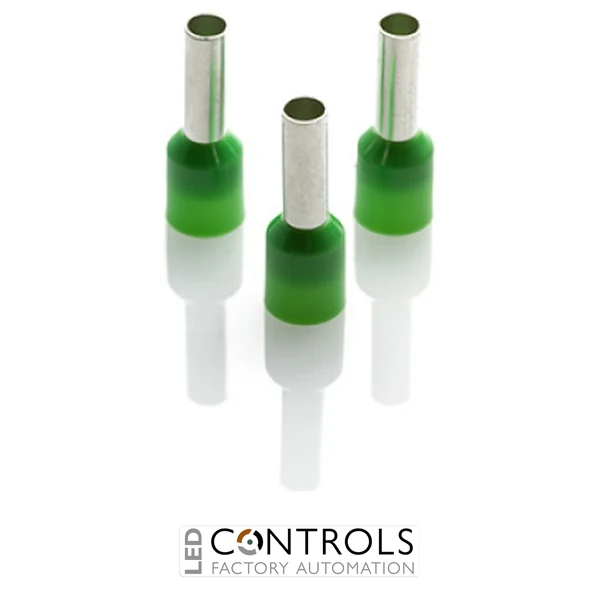

Why Choose the Partex CEF618F-C Green Insulated Cord End Ferrule?
The Partex CEF618F-C is a single insulated cord end ferrule designed for terminating flexible stranded electrical conductors in industrial control panels, electrical distribution equipment and automation systems. Featuring a 6 mm² nominal conductor size, 18 mm barrel length and green insulated collar, this ferrule provides a practical solution for preparing conductors for compatible electrical terminal connections.
As part of the Partex insulated cord end ferrule range, the CEF618F-C helps keep individual conductor strands together during termination. Its metal barrel is designed to be crimped onto a correctly prepared conductor, while the insulated collar provides a defined conductor entry point and a neat transition between the cable insulation and the terminated end.
Supplied in a convenient pack of 100 ferrules, the CEF618F-C is suitable for electrical contractors, control-panel builders, machinery manufacturers and industrial maintenance engineers requiring consistent cable preparation and reliable conductor termination in professional electrical installations.
Key Advantages
- 6 mm² conductor size for compatible flexible stranded electrical wiring.
- 18 mm barrel length suitable for compatible terminal connections requiring this ferrule length.
- Green insulated collar provides a clear visual reference during conductor preparation.
- Pack of 100 ferrules offers a convenient quantity for electrical installation and maintenance work.
- Helps contain individual conductor strands during insertion into compatible electrical terminals.
- Crimp termination supports consistent conductor preparation when correctly installed.
- Reduces the risk of loose or stray wire strands at the termination point.
- Provides a neat, professional finish to flexible conductor terminations.
- Suitable for industrial control panels, machinery and electrical distribution equipment.
- Partex manufacturer identification supports accurate product selection and repeat purchasing.
Key Features
- Partex CEF618F-C single insulated cord end ferrule.
- 6 mm² nominal conductor cross-section.
- 18 mm barrel length.
- Green insulation colour.
- 100 ferrules per pack.
- Single-conductor ferrule configuration.
- Crimp-style conductor termination.
- Insulated collar at the conductor entry.
- Metal ferrule barrel for containing stranded conductor ends.
- Designed for compatible flexible stranded electrical conductors.
- Suitable for terminal blocks and electrical connection points designed to accept ferrules.
- Useful for control-panel assembly, cable preparation and industrial maintenance.
Professional Cable Termination for Industrial Control and Automation
Flexible stranded conductors are widely used in industrial control panels, motor control equipment and automation systems. When these conductors are connected to suitable electrical terminals, a correctly selected cord end ferrule helps maintain the conductor strands together, providing a defined termination profile and reducing the likelihood of stray strands during installation.
The Partex CEF618F-C is designed for 6 mm² single-conductor termination and features an 18 mm barrel. The conductor is stripped to the appropriate length, inserted into the ferrule and secured using a suitable ferrule crimping tool. The green insulated collar provides a convenient transition at the conductor entry, while the crimped barrel is inserted into a compatible electrical terminal.
Correct ferrule selection is essential for dependable electrical connections. The receiving terminal must accept the finished ferrule dimensions and barrel length, while the conductor type, stripping length, crimp profile and terminal tightening requirements must be checked against the relevant manufacturers' instructions. A single cord end ferrule should not be used to terminate two conductors unless that arrangement is specifically approved.
Typical Applications
- Industrial electrical control-panel manufacturing.
- PLC cabinets and automation system wiring.
- Motor control centres and associated electrical circuits.
- Electrical distribution boards and control enclosures.
- Terminal block connections for flexible stranded conductors.
- Variable speed drive and motor control equipment wiring where compatible.
- OEM machinery and electrical equipment manufacturing.
- Industrial electrical maintenance and refurbishment.
- Workshop cable preparation and wiring assembly.
- Professional electrical installation and conductor termination.
