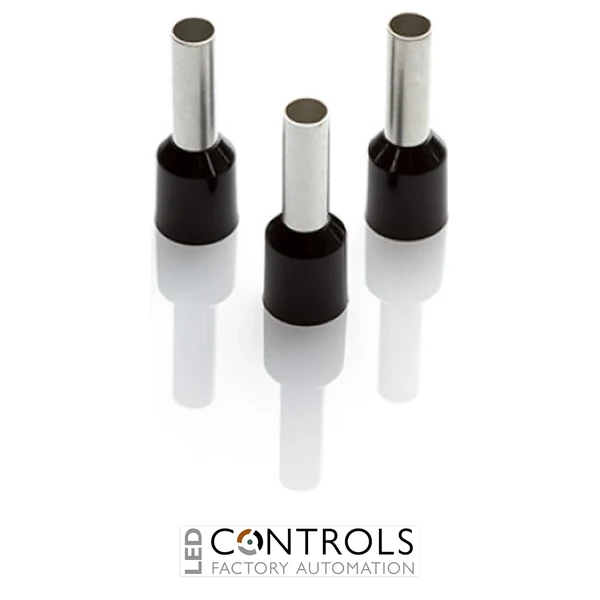

Why Choose the Partex CEF618G-C 6 mm² Black Insulated Cord End Ferrule?
The Partex CEF618G-C is a black single insulated cord end ferrule designed for terminating 6 mm² stranded electrical conductors. Featuring an 18 mm barrel length, it provides a practical solution for preparing flexible cable ends for connection to compatible electrical terminals in industrial control panels, distribution cabinets and machinery wiring.
The ferrule features a tubular metal barrel and a black insulating collar, helping keep individual conductor strands together during cable termination. Its single-conductor design supports neat, consistent wire preparation, while the extended 18 mm barrel is useful for terminal connections requiring a suitable insertion length.
Supplied in a convenient pack of 100 pieces, the Partex CEF618G-C is suitable for electricians, control panel manufacturers, automation engineers and industrial maintenance teams. It supports efficient, solderless cable termination using an appropriately sized ferrule crimping tool.
Key Advantages
- 6 mm² conductor compatibility for suitable stranded electrical wires.
- 18 mm barrel length for compatible terminal connections requiring an extended insertion section.
- Black insulated collar supports easy identification and organised electrical wiring.
- Single-conductor design provides a dedicated termination for one flexible wire.
- Helps contain individual wire strands during terminal installation.
- Supports consistent crimp termination when installed with suitable tooling.
- Eliminates the need to solder or tin conductor ends.
- Suitable for industrial electrical panels, machinery and equipment wiring.
- Provides a neat and professional finish to prepared cable ends.
- Pack of 100 ferrules offers a practical quantity for installation and maintenance work.
Key Features
- Partex CEF618G-C insulated cord end ferrule.
- 6 mm² nominal conductor cross-section.
- 18 mm metal barrel length.
- Black insulating collar.
- Single insulated ferrule configuration.
- Designed for terminating individual stranded copper conductors.
- Crimp-style cable end termination.
- Helps prevent conductor strands from spreading during installation.
- Suitable for compatible screw-clamp and spring-clamp terminals.
- Designed for use with an appropriate ferrule crimping tool.
- Suitable for electrical panel building and industrial equipment wiring.
- 100 pieces per pack.
Reliable Crimp Termination for 6 mm² Flexible Electrical Conductors
Flexible stranded conductors contain numerous individual wire strands that can separate when inserted directly into electrical terminals. The Partex CEF618G-C provides a tubular barrel that surrounds the prepared conductor end. When compressed using a suitable ferrule crimping tool, the barrel helps consolidate the strands into a consistent termination for insertion into a compatible terminal connection.
The 18 mm barrel length is an important consideration when matching the ferrule to the insertion depth of the receiving terminal. For correct installation, the conductor should be stripped to the appropriate length, fully inserted into the ferrule and crimped using a suitable die or crimping profile. The completed connection should be inspected before installation, and the receiving terminal must be suitable for ferrule-terminated conductors.
Typical Applications
- Industrial electrical control panel wiring.
- Termination of 6 mm² flexible stranded conductors.
- Electrical distribution cabinets and control assemblies.
- Industrial machinery and automation equipment wiring.
- Compatible screw-clamp and spring-clamp terminal connections.
- Electrical equipment manufacturing and assembly.
- Electrical panel building and cable preparation.
- Industrial maintenance, servicing and refurbishment.
- Electrical installations requiring insulated cord end ferrules.
