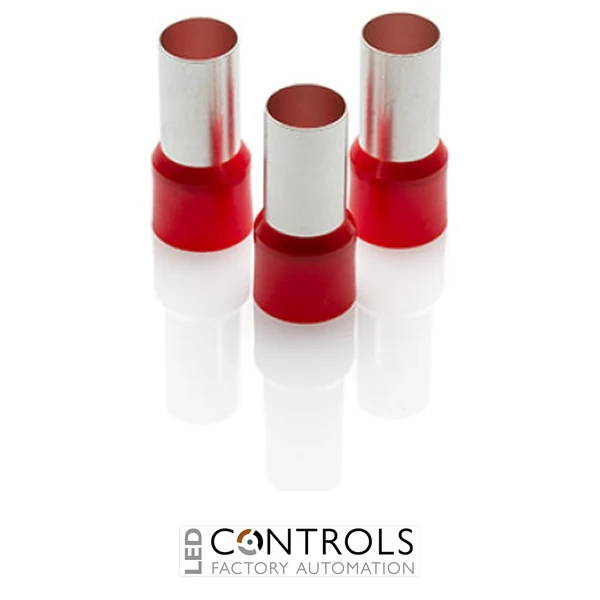

Why Choose the Partex CEF95025F-C 95 mm² Red Insulated Cord End Ferrule?
The Partex CEF95025F-C is a heavy-duty single insulated cord end ferrule designed to provide secure, professional terminations for large flexible stranded copper conductors. Featuring a 95 mm² conductor capacity, a 25 mm metal barrel length and distinctive red insulation, this bootlace ferrule is ideal for industrial electrical installations, power distribution equipment and heavy-duty electrical panel wiring.
As part of the Partex CEF insulated cord end ferrule range, the CEF95025F-C consolidates individual conductor strands within a conductive metal sleeve. This helps prevent loose strands, fraying and conductor damage during termination, while providing a neat and consistent conductor end for connection to compatible electrical terminals.
Manufactured from tin-coated high-conductivity copper with a Polyamide 66 insulated collar, the CEF95025F-C combines dependable electrical conductivity with durable conductor entry protection. Its red French-type colour coding helps identify the 95 mm² conductor size, while the extended 25 mm barrel accommodates suitable terminals requiring a longer insertion length. Supplied in a convenient pack of 100, these ferrules are an excellent choice for electrical contractors, industrial panel builders and maintenance engineers.
Key Advantages
- 95 mm² conductor capacity for terminating compatible large-section flexible stranded copper cables.
- 25 mm metal barrel length provides a substantial conductor termination section.
- Red insulated collar follows French-type colour coding for 95 mm² ferrules.
- Tin-coated high-conductivity copper supports good electrical contact and corrosion resistance.
- Polyamide 66 insulation provides a durable conductor entry collar.
- Helps prevent individual copper strands from spreading or becoming damaged during termination.
- Supports neat, consistent and repeatable electrical connections.
- Crimp termination avoids the need for soldering.
- Suitable for compatible industrial power distribution terminals and electrical equipment.
- Convenient pack of 100 for electrical installation, panel assembly and maintenance work.
Key Features
- Partex CEF series single insulated cord end ferrule.
- 95 mm² nominal conductor cross-section.
- 25 mm conductive metal crimp barrel.
- 44 mm overall ferrule length.
- Red French-type colour-coded insulation.
- Tin-coated high-conductivity copper sleeve.
- Polyamide 66 insulating collar.
- Single conductor entry for terminating one flexible electrical cable.
- 14.5 mm nominal metal sleeve internal diameter.
- 15.6 mm nominal metal sleeve external diameter.
- 19.5 mm insulation collar diameter.
- Suitable for use with compatible heavy-duty cord end ferrule crimping tools.
- Pack quantity: 100 ferrules.
Reliable 95 mm² Cable Termination for Industrial Power Distribution
Large flexible stranded copper conductors are widely used in industrial electrical systems, power distribution equipment and heavy-duty machinery where substantial conductor cross-sections and flexible cable routing are required. However, individual strands can spread or become damaged when connected directly to certain electrical terminals. The Partex CEF95025F-C 95 mm² insulated cord end ferrule helps address these issues by enclosing the stripped conductor strands within a conductive copper sleeve.
During installation, the cable insulation is stripped to the appropriate length and the exposed copper strands are inserted fully into the ferrule barrel. A compatible heavy-duty crimping tool compresses the metal sleeve around the conductor, creating a compact termination suitable for an approved electrical terminal. The 25 mm barrel provides a defined termination length, while the red Polyamide 66 collar guides the conductor and creates a neat transition between the cable insulation and the conductive sleeve.
The tin-coated copper construction supports electrical conductivity and helps protect the metal surface against corrosion. For a conductor size of 95 mm², selecting the correct ferrule, crimping die and receiving terminal is particularly important. When properly selected and installed, the CEF95025F-C supports consistent termination quality and dependable electrical connections in professional industrial wiring assemblies.
Typical Applications
- Industrial power distribution boards and electrical cabinets.
- Low-voltage switchgear and distribution equipment.
- Heavy-duty industrial electrical control panels.
- Motor control centres and industrial machinery power wiring.
- Large electrical terminal blocks approved for ferrule-terminated conductors.
- Industrial automation equipment power connections.
- Electrical cabinet manufacture and panel assembly.
- OEM industrial electrical equipment production.
- Electrical maintenance, servicing and refurbishment projects.
- Professional termination of 95 mm² flexible stranded copper cables.
