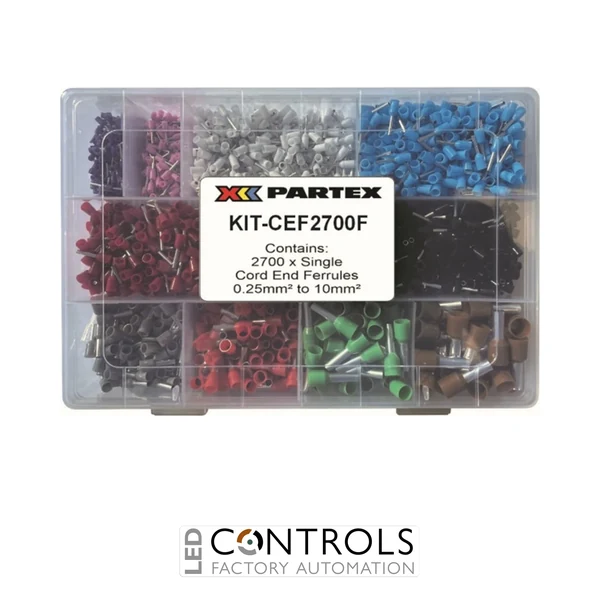

Why Choose the Partex KIT-CEF2700-F Single Insulated Cord End Ferrule Kit?
The Partex KIT-CEF2700-F is a single insulated cord end ferrule kit designed for preparing stranded electrical conductors for secure, organised and professional terminal connections. Insulated cord end ferrules provide a practical method of terminating flexible conductors by containing individual wire strands within a crimped metal sleeve, helping create a consistent conductor end for insertion into compatible electrical terminals.
As part of the Partex cable termination and electrical connection accessory range, the KIT-CEF2700-F is suitable for electrical contractors, control panel builders, industrial maintenance engineers and automation equipment manufacturers. The kit format provides a convenient way to keep insulated bootlace ferrules available for wiring assembly, installation and maintenance tasks.
Single insulated cord end ferrules are particularly useful when working with flexible, fine-stranded conductors in electrical control panels, terminal blocks and equipment connections. Each ferrule incorporates a conductive metal barrel and an insulating collar, allowing the conductor strands to be gathered and crimped into a compact termination. The Partex KIT-CEF2700-F offers a practical solution for workshops and electrical professionals requiring a selection of ferrules for everyday cable preparation and termination work.
Key Advantages
- Single insulated cord end ferrules support neat and consistent termination of flexible stranded conductors.
- Crimpable metal sleeves help contain individual conductor strands during terminal installation.
- Insulating collars provide a defined transition between the conductor insulation and the ferrule barrel.
- Kit format offers convenient access to ferrules during electrical installation and maintenance work.
- Helps reduce the risk of loose or splayed strands when conductors are correctly prepared and crimped.
- Suitable for use with compatible terminal blocks, electrical control equipment and wiring accessories.
- Supports professional cable preparation and organised control panel wiring.
- Useful for electrical workshops, maintenance departments and OEM wiring assembly operations.
- Allows repeatable conductor preparation when used with correctly matched crimping tools.
- Provides a practical alternative to inserting unprepared flexible conductor ends into terminals where ferrules are recommended or required.
Key Features
- Partex single insulated cord end ferrule kit.
- Manufacturer part number: KIT-CEF2700-F.
- Designed for terminating individual flexible stranded conductors.
- Ferrules feature a conductive crimp barrel with an insulating entry collar.
- Supports conductor strand containment and consistent terminal insertion.
- Suitable for crimping with an appropriately sized cord end ferrule crimping tool.
- Useful for electrical control panel wiring and terminal block assembly.
- Kit presentation supports convenient handling and selection during installation work.
- Designed for use with terminals that accept correctly sized insulated wire end ferrules.
- Suitable for new installations, electrical maintenance and wiring refurbishment.
Selection note: The exact ferrule size assortment, quantity of each size, conductor cross-section range and any supplied storage accessories should be confirmed against the current Partex kit specification before ordering for a particular installation.
Reliable Stranded Conductor Preparation and Terminal Connections
Flexible stranded conductors are widely used in electrical control panels, industrial automation equipment and machinery wiring because they are convenient to route and terminate. However, individual strands can separate during preparation and insertion into terminal connections. A correctly selected and crimped single insulated cord end ferrule gathers these strands within a metal sleeve, producing a more uniform conductor end and supporting reliable installation into terminals designed to accept ferrules.
The Partex KIT-CEF2700-F provides a convenient kit-based approach to ferrule termination work. For correct installation, the ferrule must match the conductor cross-sectional area, the conductor must be stripped to an appropriate length and the crimp must be formed using a compatible tool and die profile. The finished ferrule must also be compatible with the receiving terminal and its manufacturer's connection requirements. The insulating collar assists conductor entry and identification but does not replace the terminal's required insulation, enclosure or electrical safety provisions.
Typical Applications
- Industrial electrical control panel wiring.
- Preparation of flexible stranded conductors for terminal blocks.
- Programmable logic controller (PLC) cabinet wiring.
- Industrial automation and machinery electrical assemblies.
- Electrical distribution and control equipment wiring.
- Motor control panel and control circuit connections.
- OEM electrical equipment manufacturing.
- Electrical maintenance, servicing and refurbishment.
- Workshop preparation of cable harnesses and wiring assemblies.
- General electrical installation work requiring insulated cord end ferrules.
