Why Choose the Partex KIT-TCEF940-G Twin Insulated Cord End Ferrule Kit?
The Partex KIT-TCEF940-G is a professional twin insulated cord end ferrule kit designed for terminating pairs of flexible stranded conductors in industrial electrical installations, control panels and automation equipment. Featuring 940 insulated twin ferrules across eight conductor sizes, this kit provides a convenient assortment of German colour-coded bootlace ferrules for reliable and organised electrical wiring.
Part of the Partex cord end ferrule range, the KIT-TCEF940-G includes ferrules suitable for conductor sizes from 0.5 mm² to 10 mm². Twin cord end ferrules are designed to accommodate two conductors of the specified cross-sectional area within a single crimp termination, making them particularly useful for compatible terminal connections requiring two wires to be terminated together.

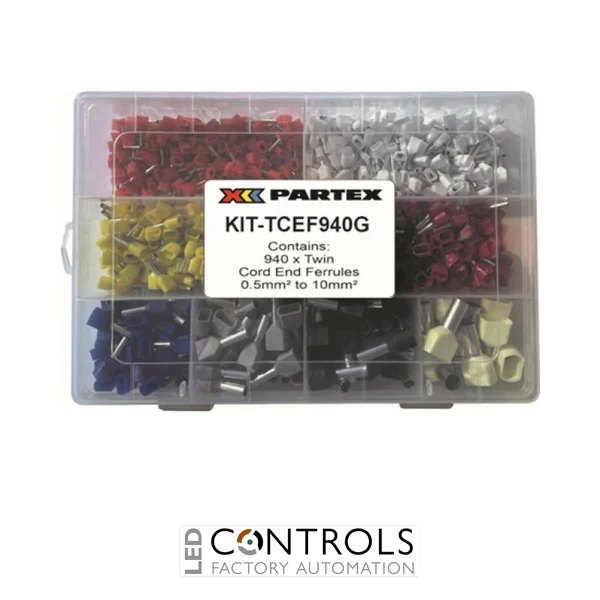

The kit is supplied in a robust plastic storage box with eight compartments and a hinged lid, helping electricians, panel builders and maintenance engineers keep different ferrule sizes organised. With German colour-coded insulated collars, the KIT-TCEF940-G supports efficient ferrule identification and professional cable preparation in demanding industrial environments.
Key Advantages
- 940 twin insulated cord end ferrules supplied in one convenient kit.
- Eight ferrule sizes covering conductor cross-sections from 0.5 mm² to 10 mm².
- German colour-coded insulation collars for straightforward size identification.
- Twin ferrule design allows two suitably sized conductors to be crimped into one termination.
- Eight-compartment storage box keeps different ferrule sizes separated and organised.
- Insulated collars help guide conductors into the ferrule barrels during preparation.
- Supports neat and consistent electrical terminations in control panels and automation equipment.
- Suitable for professional electricians, electrical contractors, OEM manufacturers and industrial maintenance teams.
Key Features
- Partex KIT-TCEF940-G twin insulated ferrule kit.
- 940 ferrules supplied across eight sizes.
- 0.5 mm²: 200 × TCEF508G, orange.
- 0.75 mm²: 200 × TCEF7508G, white.
- 1.0 mm²: 200 × TCEF108G, yellow.
- 1.5 mm²: 200 × TCEF1508G, red.
- 2.5 mm²: 60 × TCEF2510G, blue.
- 4.0 mm²: 40 × TCEF412G, grey.
- 6.0 mm²: 25 × TCEF614G, black.
- 10.0 mm²: 15 × TCEF1014G, ivory.
- German colour-coded insulated ferrules for paired stranded conductors.
- Supplied in a robust plastic compartment box with hinged lid.
Reliable Twin Conductor Termination for Industrial Wiring
Twin insulated cord end ferrules are designed to terminate two flexible stranded conductors together within a single crimp sleeve. This provides a practical connection method for compatible electrical terminal blocks and control equipment where two conductors must share a terminal connection.
The Partex KIT-TCEF940-G provides eight commonly used twin ferrule sizes, allowing installers to select the appropriate ferrule for the conductor cross-sectional area. Its German colour-coded collars simplify visual identification during cable preparation, while the insulated entry section helps guide the conductors into the metallic crimp barrel.
Correct installation requires a suitable twin ferrule crimping tool and careful matching of the ferrule size to both conductors. The receiving terminal must also be approved for the combined ferrule arrangement. Proper stripping, conductor insertion and crimping help produce consistent terminations and reduce the risk of loose wire strands.
Typical Applications
- Industrial electrical control panel manufacturing and assembly.
- PLC and automation cabinet wiring.
- Termination of two flexible conductors in compatible terminal blocks.
- Industrial machinery and equipment electrical connections.
- Electrical distribution and switchgear control wiring.
- OEM electrical equipment manufacturing.
- Industrial maintenance and electrical installation workshops.
- Professional cable preparation and ferrule stock management.
