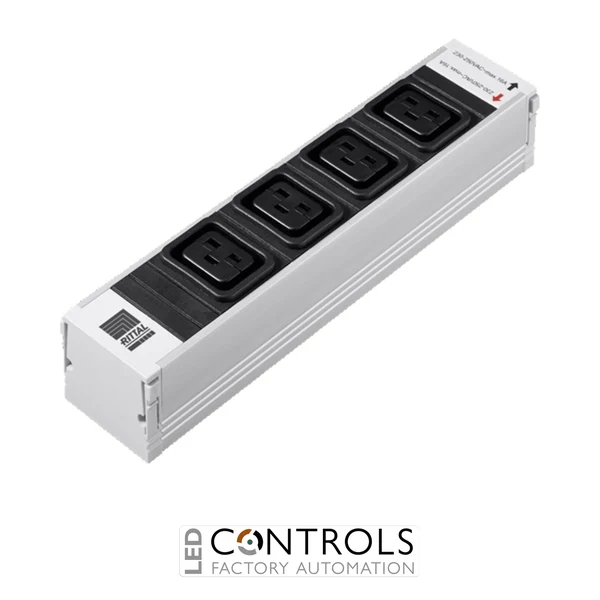

Rittal DK7856.230 PSM Plus socket module with four IEC C19 outlets designed for modular rack power distribution in IT enclosure systems.
£197.73
The Rittal DK7856.230 is a modular PSM Plus socket module with four C19 outlets designed for flexible power distribution within Rittal IT rack systems. As part of the Rittal Power System Module (PSM) range, it provides a reliable plug-in solution for supplying power to active server and network equipment in compatible enclosure installations.
The module is designed for installation into a vertical PSM support rail, allowing different socket modules to be combined in a customised rack power configuration. The plug-and-play system enables straightforward installation while maintaining a protected connection concept for professional IT infrastructure applications.
Featuring 4 × IEC 320 C19 sockets, a black finish and a non-switchable design, the Rittal DK7856.230 is suitable for modular single-phase power distribution in server cabinets, network racks and data centre environments.
The Rittal DK7856.230 provides a convenient method of extending PSM rack power systems with additional C19 outlets for active equipment. Installed into a compatible PSM support rail, it allows installers to create tailored power distribution layouts without replacing the complete system.
Its modular construction supports efficient cabinet planning by allowing multiple socket modules, earthing accessories and connection options to be combined within the same PSM rail system. This makes it suitable for modern IT cabinets where flexibility and maintainability are important.
| Manufacturer | Rittal |
|---|---|
| Model | DK7856.230 |
| Product type | PSM Plus socket module |
| Application | Modular rack power distribution |
| Socket configuration | 4 × IEC 320 C19 |
| Design | Non-switchable |
| Rated operating voltage | 110–230 V AC, 50/60 Hz |
| Rated current | Max. 16 A |
| Phases per infeed | 1-phase |
| Electrical connection | WAGO WINSTA MIDI |
| Material | Aluminium profile with PA6 GF 30 V1 plastic socket inserts |
| Length | 250 mm |
| Required module slots | 1 |
| Weight | 0.3 kg |
| Protection rating | IP20 |
The DK7856.230 is a PSM Plus socket module used to provide modular power distribution for active IT equipment in Rittal rack systems.
The module provides four IEC 320 C19 outlets for connecting compatible IT equipment.
No, the DK7856.230 is a non-switchable socket module.
The module supports a rated operating voltage of 110–230 V AC at 50/60 Hz.
The module is installed into compatible Rittal PSM support rails used in server cabinets, network racks and IT enclosure systems.
Rittal PSM power distribution solutions are trusted worldwide by IT engineers and system integrators to deliver flexible, reliable and organised rack power management.
