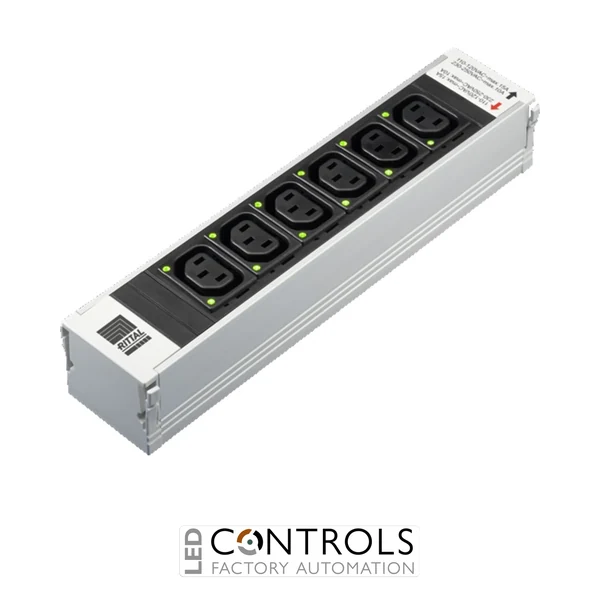

Rittal DK7859.120 PSM Plus socket module, a non-switchable six-way IEC C13 power distribution module with LED display for Rittal rack power systems.
£162.59
The Rittal DK7859.120 is a modular Power System Module (PSM) Plus socket module designed for efficient power distribution within Rittal IT racks and server enclosures. It provides six IEC C13 outlets in a compact plug-in format, allowing flexible configuration of rack power systems using Rittal PSM busbars.
Designed for professional data centre and network infrastructure applications, this non-switchable socket module features an integrated LED power display for load indication and easy monitoring of connected equipment. The modular design allows quick installation and reconfiguration without complex wiring.
With 6 x IEC 320 C13 sockets, a 16 A maximum current rating and compatibility with Rittal PSM busbars, the DK7859.120 provides a reliable solution for supplying servers, networking equipment and other rack-mounted devices.
The Rittal PSM system provides a flexible approach to rack power management by combining vertical busbars with interchangeable socket modules. This allows data centre operators and system integrators to configure power distribution according to specific equipment requirements.
The DK7859.120 improves cabinet organisation by providing a compact plug-in module with integrated LED monitoring. Its modular construction enables efficient installation, maintenance and future expansion of professional IT power systems.
| Manufacturer | Rittal |
|---|---|
| Model | DK7859.120 |
| Product type | PSM Plus socket module |
| Series | Power System Module (PSM) |
| Socket type | IEC 320 C13 |
| Number of sockets | 6 |
| Switching function | Non-switchable |
| LED display | Yes, load indication |
| Rated operating voltage | 110 V – 230 V AC, 50/60 Hz |
| Maximum rated current | 16 A |
| Phases per infeed | 1~ |
| Electrical connection | WAGO WINSTA MIDI |
| Required module slots | 1 |
| Dimensions (W × H × D) | 50 × 250 × 45 mm |
| Length | 250 mm |
| Protection category | IP20 |
| Operating temperature | 5 °C to 45 °C |
| Ambient humidity | 5–95 % non-condensing |
| Weight | approx. 0.34 kg |
The DK7859.120 is a PSM Plus socket module used to provide power connections for rack-mounted IT equipment through a Rittal PSM busbar system.
The Rittal DK7859.120 provides 6 x IEC 320 C13 sockets for connecting compatible equipment.
No, the DK7859.120 is a non-switchable socket module designed for continuous power distribution.
The module supports a maximum rated current of 16 A.
The integrated LED display provides visual indication of the current load status on the PSM module.
Rittal PSM power distribution solutions are trusted by data centre operators, IT specialists and system integrators for reliable, modular and space-efficient rack power management.
