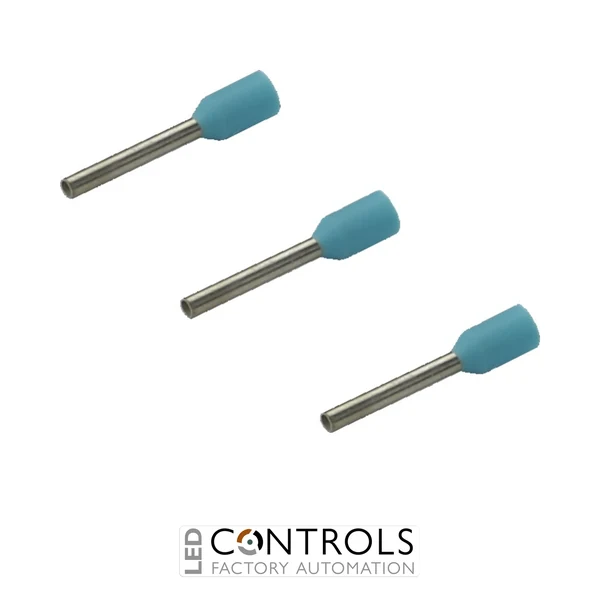

Why Choose the Rittal Wire End Ferrules According to Rittal Colour Code AS4050.757?
The Rittal Wire End Ferrules AS4050.757 are professional insulated wire end ferrules with plastic collar designed for reliable conductor termination in electrical panels, control cabinets and industrial automation systems. As part of the Rittal wire processing accessories range, these ferrules provide a secure and consistent connection method for stranded conductors.
Manufactured from electrolytic copper with galvanic tin plating, the AS4050.757 ferrules provide excellent electrical conductivity and corrosion resistance. The polypropylene insulation collar supports accurate conductor insertion and helps achieve reliable crimping results during manual wire processing.
With a conductor cross-section of 0.34 mm², a sleeve length of 8 mm, AWG 22 compatibility and the Rittal colour code, the AS4050.757 is ideal for professional control cabinet wiring, automation assembly and electrical installation applications.
Key Advantages
- Professional insulated wire end ferrules for reliable conductor termination.
- Suitable for 0.34 mm² conductors.
- 8 mm sleeve length for standard control wiring applications.
- Manufactured from tin-plated copper for dependable electrical performance.
- Polypropylene collar improves conductor guidance during crimping.
- Designed according to the Rittal colour code system.
Key Features
- Rittal AS4050 wire processing accessory series.
- Wire end ferrule with plastic collar.
- Cross-section: 0.34 mm².
- Length: 8 mm.
- AWG: 22.
- Colour: Turquoise.
- Rittal colour code: Yes.
- Material: E-Cu, galvanically tin-plated.
- Plastic collar material: Polypropylene.
- Suitable for manual wire processing.
Reliable Wire Termination for Control Cabinet Manufacturing
Wire end ferrules improve electrical connection reliability by consolidating stranded conductors and creating a stable contact surface for terminal blocks and electrical components. The Rittal AS4050.757 provides consistent conductor preparation when correctly crimped using suitable tooling.
Designed for industrial electrical assembly environments, these ferrules support efficient control cabinet construction, machine wiring and automation projects where dependable wire preparation is essential.
Typical Applications
- Control cabinet manufacturing.
- Industrial automation wiring.
- Terminal block connections.
- Machine building and OEM assembly.
- Switchgear construction.
- Professional electrical installation work.
