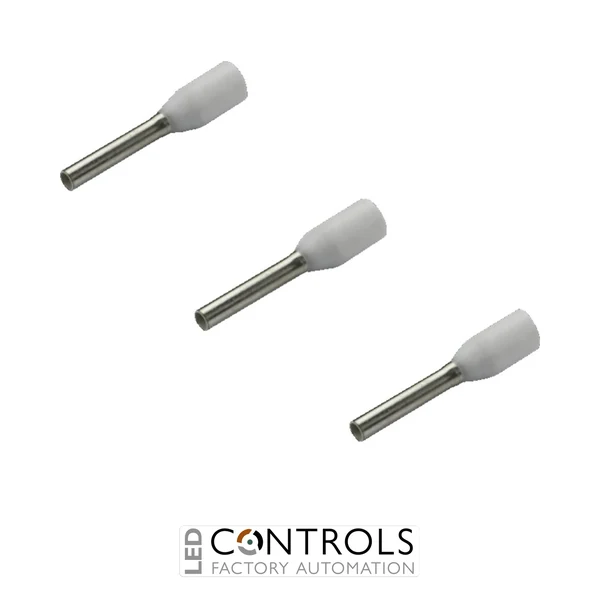

Why Choose the Rittal AS 4050.764 Wire End Ferrules?
The Rittal AS 4050.764 wire end ferrules are professional 0.75 mm² insulated ferrules designed for reliable termination of flexible stranded conductors in electrical panel building and wire-processing applications. Manufactured according to the Rittal colour code, these ferrules feature a white insulating collar and provide a consistent termination for professional control cabinet and switchgear wiring.
Each ferrule combines a conductive galvanically tin-plated E-Cu copper sleeve with a durable polypropylene plastic collar. Once correctly crimped, the ferrule consolidates the individual conductor strands into a controlled termination, helping prevent strand separation and supporting reliable insertion into terminal blocks, control devices and other electrical connection points.
The AS 4050.764 is designed for conductors with a cross-section of 0.75 mm² / AWG 18 and has a length of 8 mm with an internal diameter of 2.8 mm. Heat-resistant up to 105 °C and manufactured in accordance with AEH DIN 46228, these ferrules are supplied loose in packs of 500 pieces for efficient manual and automated wire-processing workflows.
Key Advantages
- Designed for reliable termination of 0.75 mm² stranded conductors.
- 8 mm ferrule length for compatible electrical connections.
- White Rittal colour-coded collar supports conductor identification.
- Manufactured from galvanically tin-plated E-Cu copper.
- Integrated polypropylene insulating collar.
- Heat-resistant up to 105 °C.
- Manufactured in accordance with AEH DIN 46228.
- Supplied loose in a convenient 500-piece pack.
Key Features
- Rittal Automation Systems wire end ferrules.
- 0.75 mm² conductor cross-section.
- AWG 18 conductor size.
- 8 mm length.
- 2.8 mm internal diameter.
- Galvanically tin-plated E-Cu copper ferrule.
- Polypropylene plastic collar.
- White Rittal colour coding.
- Heat-resistant up to 105 °C.
- Loose delivery format for flexible wire processing.
- UL and C-UL listed when used with the relevant approved tools.
Reliable Wire Termination for Panel Building
Wire end ferrules provide a controlled termination for flexible stranded conductors before connection to electrical terminals. Correctly crimping the ferrule around the conductor strands creates a compact and consistent termination, helping prevent individual strands from spreading while simplifying insertion into terminal blocks and other electrical connection points.
The Rittal AS 4050.764 ferrules combine defined 0.75 mm² / AWG 18 conductor compatibility with a white Rittal colour-coded collar for convenient identification. Their 8 mm length, heat-resistant construction and loose delivery format make them suitable for professional panel-building and compatible automated wire-processing equipment.
Typical Applications
- Electrical control panel wiring.
- Switchgear manufacturing.
- Industrial automation cabinets.
- Terminal block connections.
- Machine control wiring.
- Manual and automated wire processing.
- Control cabinet production.
- Preparation of 0.75 mm² stranded conductors.
