Why Choose the Ilme CAP16CS29 Surface Mounting Housing?

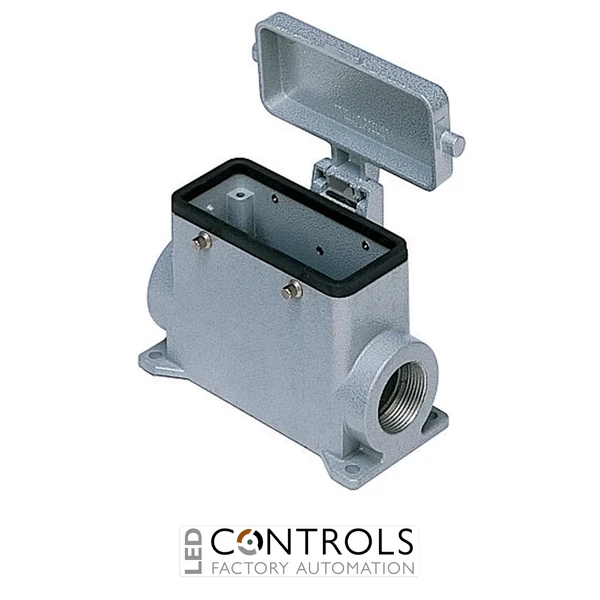

The Ilme CAP16CS29, manufacturer reference CAP 16 CS29, is a robust surface mounting housing with four locking pegs, a Pg29 cable entry and a metal cover. Designed for heavy-duty multipole connector systems, it uses the 77.27 enclosure size and provides a secure fixed connection interface for industrial machinery, automation equipment and control installations.
The CAP16CS29 combines a durable industrial enclosure with four locking pegs that engage with the levers of a compatible Ilme hood. This provides secure mechanical coupling while retaining the convenience of a detachable connector system for installation, maintenance and equipment replacement.
A Pg29 cable entry provides a practical route for the incoming cable, while the supplied metal cover protects the connector interface when the mating connector is removed. This configuration is particularly useful for fixed machinery and panel-mounted applications where the connection point may periodically remain uncoupled.
Key Advantages
- Robust surface mounting housing for heavy-duty industrial connector systems.
- Four locking pegs provide secure coupling with compatible lever-equipped Ilme hoods.
- Supplied with a metal protective cover for the connector interface.
- Pg29 cable entry provides practical routing for the incoming cable.
- Size 77.27 format supports compatible Ilme multipole connector inserts.
- Provides a durable fixed interface for detachable industrial power, control and signal connections.
Key Features
- Ilme industrial connector enclosure.
- Surface mounting housing configuration.
- Four integrated locking pegs.
- Metal protective cover.
- Size 77.27 enclosure format.
- Pg29 cable entry.
- Designed for compatible Ilme heavy-duty multipole connector inserts.
- Suitable for machinery, automation and industrial electrical equipment.
- Supports detachable power, control and signal connector interfaces.
Protected Surface-Mounted Industrial Connections
Surface mounting connector housings provide a fixed electrical interface on machinery, panels and production equipment while allowing the mating cable connector to be disconnected whenever installation or maintenance requires it. A protective cover is especially valuable where the fixed connector may remain uncoupled, helping shield the connector interface between connections.
The Ilme CAP16CS29 combines a size 77.27 housing, four locking pegs, a Pg29 cable entry and a metal cover in one practical enclosure solution. Used with correctly selected compatible Ilme inserts and mating connector components, it provides a dependable interface for industrial power, control and signal circuits.
Typical Applications
- Industrial machinery and machine-tool connections.
- Factory automation and production equipment.
- Electrical control panels and cabinets.
- Robotics and automated handling systems.
- Motor, drive and actuator connections.
- Industrial power, control and signal interfaces.
- Fixed connection points requiring protection while disconnected.
