Why Choose the ILME CAP24CS2 Surface Mounting Housing?

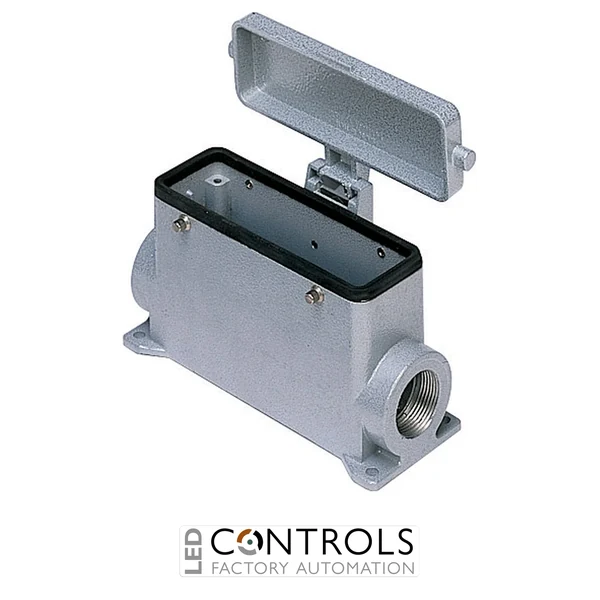

The ILME CAP24CS2 is a robust surface mounting housing for rectangular industrial connectors, designed to provide secure mechanical protection and reliable connector installation in machinery, automation and electrical systems. Part of the ILME C-TYPE series, this high-construction housing features four locking pegs, two Pg21 cable entries and a durable metal cover.
Designed for size 104.27 connector inserts, the CAP24CS2 provides a fixed mounting point for compatible ILME heavy-duty connector assemblies. Its two Pg21 side cable entries provide flexible cable routing, while the four-peg closing arrangement enables secure engagement with compatible mating connector hoods.
The aluminium housing combines rugged industrial construction with an IP65 degree of protection when correctly assembled with compatible components. Its metal cover helps protect the connector interface while disconnected, making the CAP24CS2 particularly suitable for demanding industrial installations where reliable environmental and mechanical protection is required.
Key Advantages
- Heavy-duty surface mounting connector housing for industrial applications.
- Size 104.27 format for compatible ILME rectangular connector inserts.
- Four locking pegs for secure engagement with compatible connector hoods.
- Two Pg21 cable entries provide flexible cable routing.
- High-construction design provides additional internal cable space.
- Supplied with a durable metal cover for connector protection.
- IP65 protection when correctly assembled with compatible components.
Key Features
- ILME C-TYPE series surface mounting housing.
- Four-peg closing system.
- Size 104.27 connector format.
- 2 × Pg21 side cable entries.
- High-construction housing for industrial connector assemblies.
- Durable aluminium housing.
- Integrated metal cover.
- IP65 degree of protection.
- Designed for fixed mounting on machinery, panels and industrial equipment.
Reliable Protection for Industrial Connector Systems
Surface mounting housings such as the ILME CAP24CS2 provide a secure fixed interface for heavy-duty multipole connectors used on machinery, electrical enclosures and automation equipment. The housing supports compatible connector inserts while helping protect the electrical connection against mechanical exposure, dust and moisture.
The CAP24CS2 combines a high-profile aluminium body with two side cable entries, making it particularly useful where multiple cable routes or increased wiring flexibility are required. Its metal cover protects the connector opening when disconnected, while the four-peg configuration provides a dependable mechanical connection with compatible ILME mating hoods.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and control systems.
- Electrical control panels and industrial enclosures.
- Heavy-duty multipole connector installations.
- Material handling and conveyor systems.
- Motor, machine and equipment wiring interfaces.
- Industrial installations requiring protected detachable connections.
