Why Choose the Ilme CAV06L21 Hood?

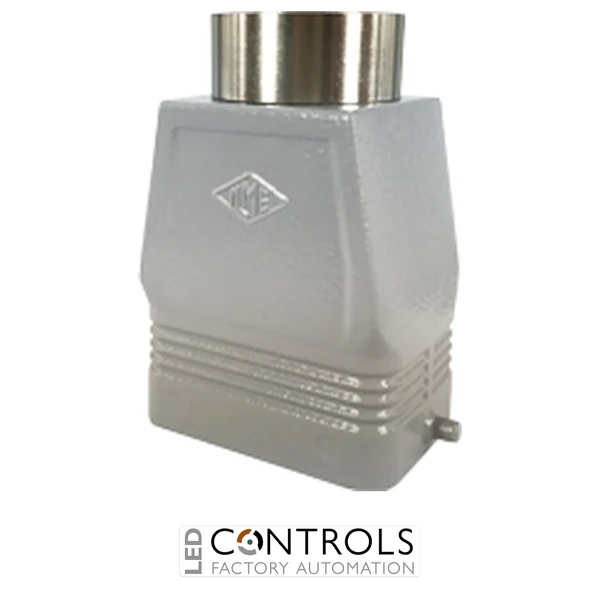

The Ilme CAV06L21, also referenced as CAV 06 L21, is a heavy-duty C-TYPE industrial connector hood designed to protect compatible multipole connector inserts in machinery, automation and industrial electrical systems. It features two locking pegs, Ilme size 44.27 and a Pg21 top cable entry for straightforward cable routing.
The top-entry configuration allows cabling to approach the connector vertically, making the CAV06L21 particularly useful where side-entry cable routing is impractical or installation space is constrained. Its two locking pegs are designed to engage with the levers of a compatible Ilme housing, providing secure mechanical coupling while allowing the connector assembly to be disconnected for servicing or equipment changes.
The CAV06L21 is designed for demanding industrial environments and forms part of Ilme's robust heavy-duty connector enclosure system. When correctly assembled with compatible Ilme components and suitable cable-entry accessories, it provides IP65 / IP66 / IP69 protection, helping protect electrical connections against dust and water ingress.
Key Advantages
- Robust C-TYPE hood for heavy-duty industrial connector systems.
- Size 44.27 format for compatible Ilme connector inserts and housings.
- Two locking pegs provide secure coupling with compatible lever-equipped housings.
- Pg21 top cable entry supports direct vertical cable routing.
- Top-entry configuration is useful where lateral installation space is limited.
- IP65 / IP66 / IP69 protection when correctly assembled with compatible components.
- Supports reliable, serviceable industrial power, control and signal connections.
Key Features
- Ilme C-TYPE heavy-duty connector hood.
- Two-peg locking arrangement.
- Size 44.27.
- Pg21 top cable entry.
- Designed for compatible Ilme multipole connector inserts.
- Compatible with appropriately sized Ilme housings featuring corresponding locking levers.
- IP65 / IP66 / IP69 protection when correctly assembled.
- Suitable for machinery, automation and industrial electrical installations.
Reliable Protection for Industrial Connections
Industrial connector hoods protect compatible connector inserts and provide cable access for detachable electrical connections. The Ilme CAV06L21 uses a Pg21 top entry, allowing the associated cable to approach the connector vertically while the size 44.27 enclosure accommodates compatible Ilme multipole inserts.
The hood's two locking pegs engage with the levers of a compatible Ilme housing to create a secure mechanical connection. This arrangement allows the connector to remain firmly coupled during normal operation while still permitting convenient disconnection for installation, maintenance or replacement of machinery and equipment.
Typical Applications
- Industrial machinery and machine tools.
- Factory automation and production equipment.
- Control panels and electrical cabinets.
- Motor and actuator connections.
- Conveyor and material handling systems.
- Industrial power, control and signal connections.
- Heavy-duty multipole connector assemblies.
