Why Choose the Ilme CAV06L29 Hood?

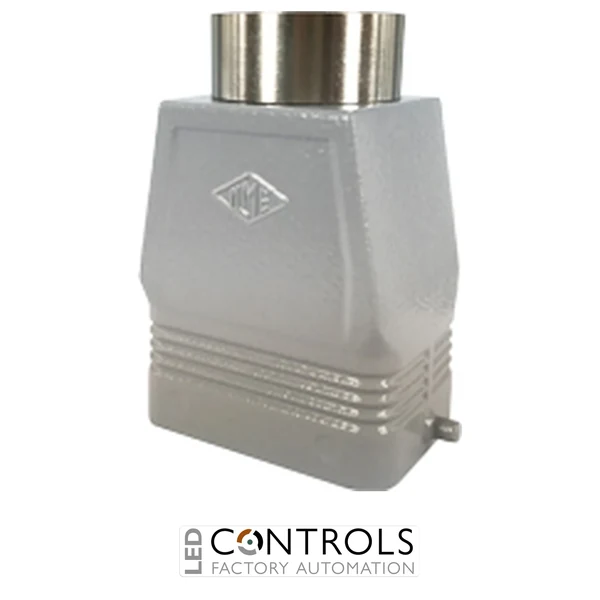

The Ilme CAV06L29, also referenced as CAV 06 L29, is a heavy-duty C-TYPE industrial connector hood designed to protect compatible multipole connector inserts in machinery, automation and industrial electrical systems. It features two locking pegs, Ilme size 44.27 and a Pg29 top cable entry for direct vertical cable routing.
The top-entry configuration allows the associated cable to approach the connector vertically, making the CAV06L29 useful where side-entry routing is unsuitable or installation geometry favours an overhead cable path. Its two locking pegs are designed to engage with the levers of a compatible Ilme housing, providing secure mechanical coupling while retaining convenient disconnect capability for servicing and equipment changes.
Designed for demanding industrial connector applications, the CAV06L29 forms part of Ilme's robust C-TYPE enclosure system. When correctly assembled with compatible Ilme components and suitable cable-entry accessories, the hood provides IP65 / IP66 / IP69 protection, helping protect the enclosed connection against dust and water ingress.
Key Advantages
- Robust C-TYPE hood for heavy-duty industrial connector systems.
- Size 44.27 format for compatible Ilme connector inserts and housings.
- Two locking pegs provide secure coupling with compatible lever-equipped housings.
- Pg29 top cable entry accommodates larger cable-entry requirements than Pg21 variants.
- Top-entry configuration supports direct vertical cable routing.
- IP65 / IP66 / IP69 protection when correctly assembled with compatible components.
- Supports reliable and serviceable industrial power, control and signal connections.
Key Features
- Ilme C-TYPE heavy-duty connector hood.
- Two-peg locking arrangement.
- Size 44.27.
- Pg29 top cable entry.
- High-construction hood design.
- Designed for compatible Ilme multipole connector inserts.
- Compatible with appropriately sized Ilme housings featuring corresponding locking levers.
- IP65 / IP66 / IP69 protection when correctly assembled.
- Suitable for machinery, automation and industrial electrical installations.
Reliable Protection for Industrial Connections
Industrial connector hoods protect compatible connector inserts while providing an organised cable-entry point for detachable electrical connections. The Ilme CAV06L29 uses a Pg29 top entry, allowing the cable to approach vertically while its size 44.27 enclosure accommodates compatible Ilme multipole connector inserts.
The hood's two locking pegs engage with the levers of a compatible Ilme housing to create a secure mechanical connection. This arrangement helps keep the connector firmly coupled during operation while still allowing convenient disconnection for installation, maintenance, machinery servicing or equipment replacement.
Typical Applications
- Industrial machinery and machine tools.
- Factory automation and production equipment.
- Control panels and electrical cabinets.
- Motor and actuator connections.
- Conveyor and material handling systems.
- Industrial power, control and signal connections.
- Heavy-duty multipole connector assemblies.
