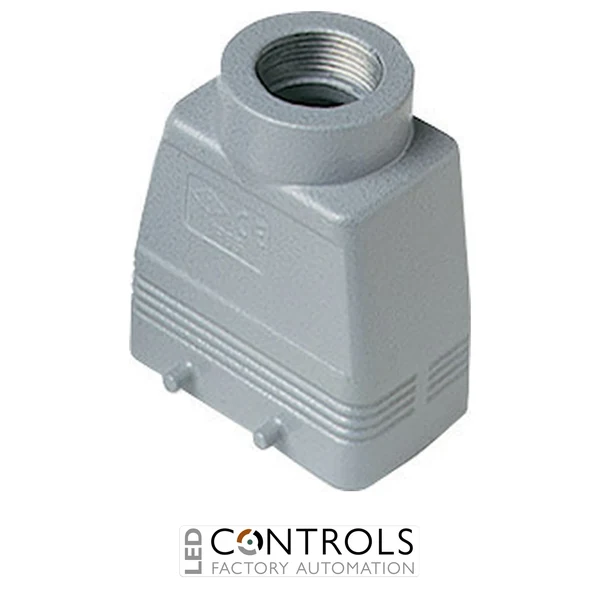

Why Choose the Ilme CAV10.21 Hood?
The Ilme CAV10.21 is a robust heavy-duty multipole connector hood designed for dependable cable-side connections in industrial machinery, automation equipment and electrical control systems. Part of the Ilme C-TYPE series, this high-construction hood combines a size 57.27 interface with four locking pegs and a straight Pg21 top cable entry.
Designed for cable mounting, the CAV10.21 provides a durable enclosure for compatible Ilme connector inserts and mates with suitable housings equipped with locking levers. Its four pegs engage with the corresponding housing levers to create a secure mechanical connection while allowing convenient disconnection during installation, servicing and equipment maintenance.
The hood is manufactured from aluminium and features a RAL 7040 grey finish. When correctly assembled with compatible Ilme components, it provides IP65 / IP66 / IP69 protection, while its operating temperature range of -40 °C to +125 °C supports reliable performance across demanding industrial environments.
Key Advantages
- Heavy-duty C-TYPE connector hood for industrial multipole connections.
- Size 57.27 format for compatible Ilme connector inserts and housings.
- Pg21 top cable entry provides straight cable routing into the connector assembly.
- Four locking pegs provide secure engagement with compatible lever-equipped housings.
- High-construction design provides useful internal space for cable termination and routing.
- Durable aluminium construction for industrial machinery and automation applications.
- IP65 / IP66 / IP69 protection when correctly assembled with compatible components.
Key Features
- Ilme C-TYPE series.
- Cable-side hood configuration.
- Size 57.27 enclosure format.
- High-construction design.
- Four locking pegs.
- Top cable entry.
- Single Pg21 threaded cable entry.
- Durable aluminium construction.
- IP65 / IP66 / IP69 degree of protection when correctly assembled.
- RAL 7040 grey finish.
- Operating temperature range from -40 °C to +125 °C.
- RoHS compliant and free from declared REACH SVHC substances.
Reliable Protection for Industrial Multipole Connections
Heavy-duty connector hoods form the cable-side enclosure of multipole connector assemblies, protecting the insert and cable termination while providing a robust detachable interface with a fixed or cable-mounted mating housing. This modular arrangement enables multiple electrical circuits to be connected and disconnected efficiently, helping simplify machinery installation, commissioning and maintenance.
The Ilme CAV10.21 combines high aluminium construction with a straight Pg21 top cable entry and four locking pegs. The pegs engage with the locking levers of a compatible mating housing, while the high-construction format provides useful internal cable space. When correctly assembled, its IP65 / IP66 / IP69 protection helps safeguard connections against dust and water in demanding industrial environments.
Typical Applications
- Industrial machinery and machine building.
- Factory automation and production equipment.
- Electrical control and distribution equipment.
- Motor and machinery connection systems.
- Conveyors and material handling equipment.
- Industrial multipole cable and connector assemblies.
