Why Choose the Ilme CAV10X29 Hood?

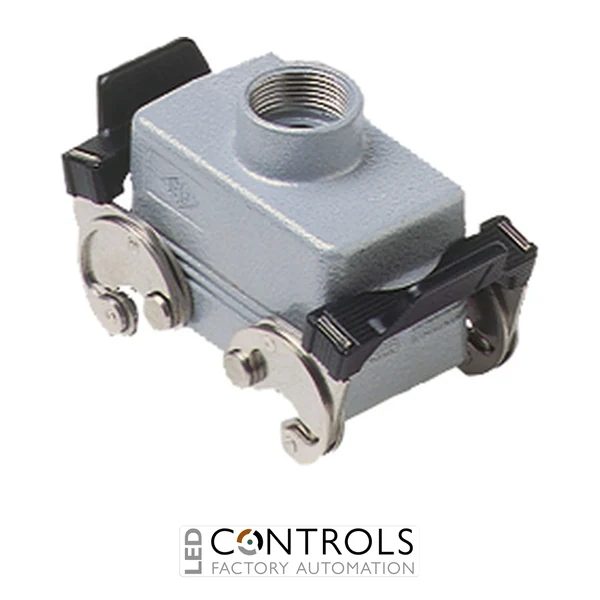

The Ilme CAV10X29, also referenced as CAV 10 X29, is a heavy-duty C-TYPE industrial connector hood designed for demanding machinery, automation and industrial electrical connections. It features two locking levers, Ilme size 57.27 and a Pg29 top cable entry, providing a robust enclosure for compatible Ilme multipole connector inserts.
The CAV10X29 uses a high-construction design that provides useful internal space for connector wiring and cable termination. Its Pg29 top entry routes the cable vertically from the connector, while the two integrated locking levers engage with the corresponding pegs on a compatible Ilme housing to provide secure and serviceable mechanical coupling.
This C-TYPE hood is specifically designed without a gasket and provides IP65 / IP66 / IP69 protection when correctly assembled with compatible mating components and suitable cable-entry accessories. With an operating temperature range of -40 °C to +125 °C, the CAV10X29 is designed for heavy-duty industrial connector installations across a wide range of operating conditions.
Key Advantages
- Robust C-TYPE hood for heavy-duty industrial connector systems.
- Size 57.27 format for compatible Ilme connector inserts and mating housings.
- Two integrated locking levers provide secure coupling with compatible peg-equipped housings.
- Pg29 top cable entry supports direct vertical cable routing.
- High-construction design provides useful internal space for wiring and termination.
- IP65 / IP66 / IP69 protection when correctly assembled with compatible components.
- Wide -40 °C to +125 °C operating temperature range.
- Suitable for serviceable industrial power, control and signal connections.
Key Features
- Ilme C-TYPE heavy-duty connector hood.
- Two-lever locking arrangement.
- Size 57.27.
- Pg29 top cable entry.
- High-construction hood design.
- Specified without gasket.
- IP65 / IP66 / IP69 protection when correctly assembled.
- Designed for compatible Ilme multipole connector inserts.
- Suitable for machinery, automation and industrial electrical installations.
Reliable Protection for Industrial Connections
Industrial connector hoods protect compatible connector inserts while providing a defined cable-entry point for detachable electrical connections. The Ilme CAV10X29 combines a Pg29 top entry with a high-construction size 57.27 enclosure, allowing the associated cable to approach vertically while providing space for the compatible connector insert and its wiring.
Unlike peg-equipped hood variants, the CAV10X29 incorporates two locking levers. These levers engage with the corresponding pegs on a compatible Ilme housing, keeping the connector assembly securely coupled during operation while allowing convenient disconnection for installation, maintenance or equipment replacement.
Typical Applications
- Industrial machinery and machine tools.
- Factory automation and production equipment.
- Control panels and electrical cabinets.
- Motor and actuator connection systems.
- Conveyor and material handling equipment.
- Industrial power, control and signal connections.
- Heavy-duty multipole connector assemblies.
