Why Choose the ILME CAV16G29 Hood?

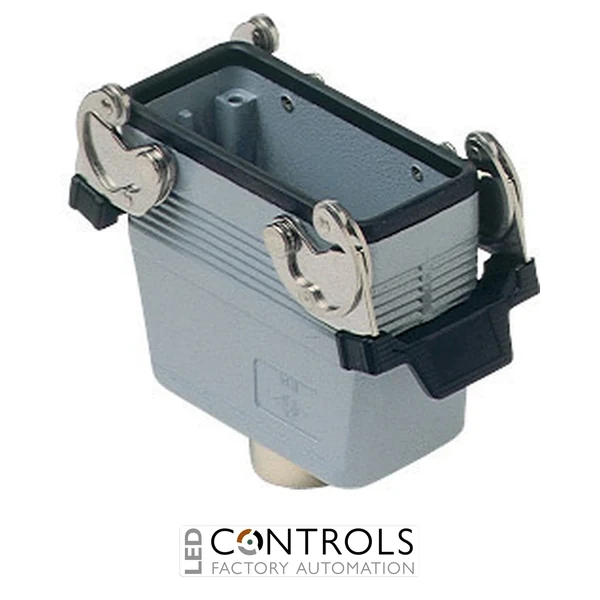

The ILME CAV16G29 is a robust heavy-duty rectangular connector hood designed for secure and protected electrical connections in industrial machinery, automation and control applications. Part of the ILME C-TYPE series, this high-construction hood features two locking levers, a gasket and a Pg29 top cable entry with adapter.
Designed for size 77.27 connector assemblies, the CAV16G29 provides a durable enclosure for compatible ILME multipole connector inserts. Its two-lever closing system provides secure connector mating, while the straight top-entry arrangement allows convenient cable routing directly away from the connector interface.
The CAV16G29 provides IP65, IP66 and IP69 protection when correctly assembled with compatible components, making it suitable for demanding environments where resistance to dust, moisture and water ingress is important. Its high-construction format provides additional internal termination space, supporting reliable installation in industrial equipment.
Key Advantages
- Heavy-duty industrial connector hood for machinery and automation applications.
- Size 77.27 format for compatible ILME rectangular connector inserts.
- Two locking levers provide secure and convenient connector mating.
- Pg29 top cable entry with adapter for straight cable routing.
- High-construction design provides useful internal termination space.
- Integrated gasket supports effective environmental sealing.
- IP65, IP66 and IP69 protection when correctly assembled.
Key Features
- ILME C-TYPE series heavy-duty connector hood.
- Size 77.27 connector format.
- Two-lever closing system.
- Pg29 top cable entry with adapter.
- High-construction enclosure design.
- Integrated sealing gasket.
- IP65 / IP66 / IP69 degree of protection.
- Wide -40 °C to +125 °C operating temperature range.
- Designed for compatible ILME heavy-duty rectangular connector systems.
Reliable Cable-Side Protection for Industrial Connectors
Heavy-duty connector hoods such as the ILME CAV16G29 provide mechanical and environmental protection around the cable-side termination of compatible rectangular connector inserts. They allow machinery and equipment to use robust multipole electrical connections that can be disconnected when installation, servicing or equipment replacement is required.
The Pg29 straight top-entry arrangement provides practical cable routing, while the high-construction body offers useful termination space. Combined with the gasket and two-lever locking arrangement, the CAV16G29 provides a secure and environmentally protected connection solution for demanding industrial installations.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and control systems.
- Heavy-duty multipole connector assemblies.
- Electrical control panels and industrial equipment.
- Material handling and conveyor systems.
- Motor and machine wiring connections.
- Production equipment requiring detachable electrical interfaces.
