Why Choose the ILME CAV16L21 Hood?

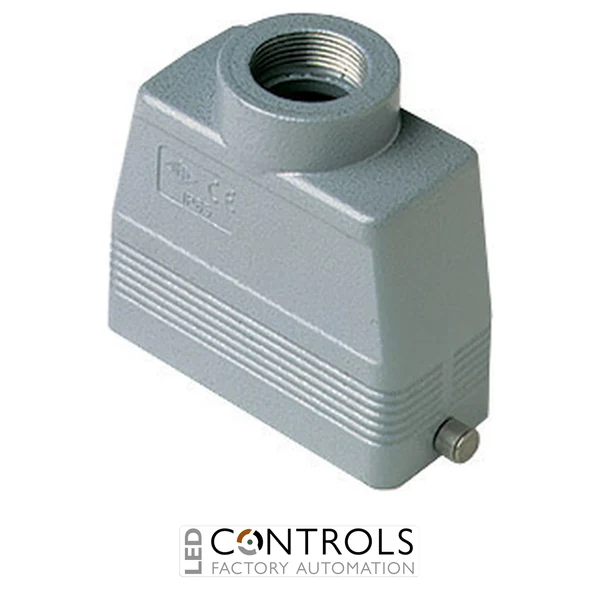

The ILME CAV16L21 is a robust heavy-duty rectangular connector hood designed to provide dependable cable-side protection for industrial machinery, automation and electrical installations. Part of the ILME C-TYPE series, this high-construction hood features two locking pegs, a Pg21 top cable entry and a size 77.27 interface for compatible ILME connector inserts.
The CAV16L21 provides a secure enclosure around the cable-side termination of compatible multipole connector assemblies. Its two-peg closing arrangement is designed to engage with compatible lever-equipped ILME housings, while the straight top-entry configuration allows the cable to route directly away from the connector interface.
With IP65, IP66 and IP69 protection when correctly assembled, plus a broad -40 °C to +125 °C operating temperature range, the CAV16L21 is suitable for demanding industrial environments. Its rugged construction and high-profile design provide a reliable solution for detachable electrical connections on machinery and production equipment.
Key Advantages
- Heavy-duty industrial connector hood for machinery and automation applications.
- Size 77.27 format for compatible ILME rectangular connector inserts.
- Two locking pegs for secure mating with compatible lever-equipped housings.
- Pg21 top cable entry provides straightforward cable routing.
- High-construction design provides useful internal termination space.
- IP65, IP66 and IP69 protection when correctly assembled.
- Wide -40 °C to +125 °C operating temperature range.
Key Features
- ILME C-TYPE series heavy-duty connector hood.
- Size 77.27 connector format.
- Two-peg closing system.
- Pg21 top cable entry.
- High-construction enclosure design.
- IP65 / IP66 / IP69 degree of protection.
- RAL 7040 grey finish.
- -40 °C to +125 °C operating temperature range.
- DNV and BV certified.
- RoHS compliant.
Reliable Cable-Side Protection for Industrial Connectors
Heavy-duty connector hoods such as the ILME CAV16L21 provide mechanical and environmental protection around the cable-side termination of compatible rectangular connector inserts. They enable machinery and industrial equipment to use robust multipole electrical connections while retaining the convenience of a detachable interface for installation, servicing and equipment replacement.
The Pg21 straight top-entry configuration provides practical cable routing, while the high-construction body offers useful space for termination. Combined with the two locking pegs and high ingress-protection capability, the CAV16L21 provides a dependable connection solution for demanding industrial environments.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and control systems.
- Heavy-duty multipole connector assemblies.
- Electrical control panels and industrial equipment.
- Material handling and conveyor systems.
- Motor and machine wiring connections.
- Production equipment requiring detachable electrical interfaces.
