Why Choose the ILME CAV24LG29 Hood?

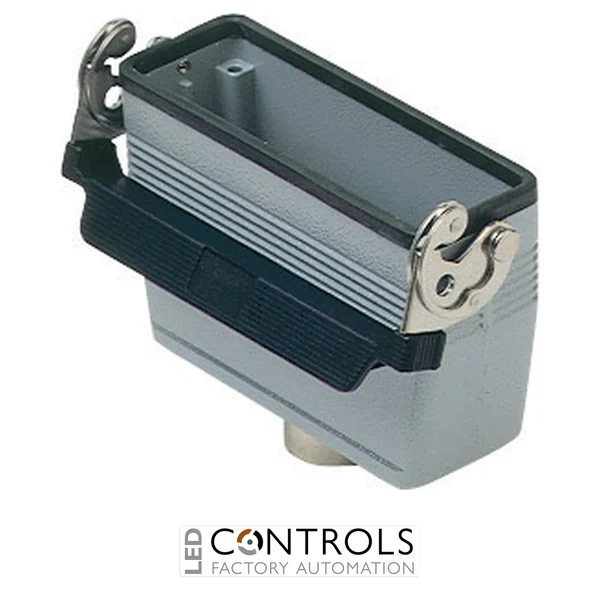

The ILME CAV24LG29, manufacturer part number CAV 24 LG29, is a robust C-TYPE industrial connector hood designed to protect compatible multipole connector inserts and cable terminations in machinery, automation and demanding electrical installations. Its high-construction design and single locking lever provide a secure and dependable enclosure solution for detachable industrial power, control and signal connections.
Designed for size 104.27 connector assemblies, the CAV24LG29 features a top-entry Pg29 cable connection with adapter, allowing suitable industrial cabling to enter vertically through the hood. The locking lever incorporates stainless-steel and polyamide components, while an NBR gasket supports effective environmental sealing when the complete connector assembly is correctly fitted and closed.
With IP65, IP66 and IP69 protection when correctly assembled with compatible components and an operating temperature range of -40 °C to +125 °C, the CAV24LG29 is engineered for demanding industrial environments. Its high-construction format provides useful internal space for wiring and termination, making it suitable for machinery, manufacturing equipment, control systems and factory automation installations.
Key Advantages
- Robust C-TYPE industrial connector hood for size 104.27 assemblies.
- Single locking lever provides straightforward and secure connector engagement.
- Top-entry Pg29 cable connection with adapter supports convenient vertical cable routing.
- NBR gasket supports dependable environmental sealing.
- IP65 / IP66 / IP69 protection when correctly assembled with compatible components.
- Wide -40 °C to +125 °C operating temperature range for demanding industrial installations.
Key Features
- ILME C-TYPE series.
- Size 104.27 connector interface.
- One-lever closing system.
- Top cable entry with adapter.
- Pg29 cable entry.
- High-construction enclosure design.
- Lever manufactured from stainless steel and polyamide (PA).
- NBR gasket for environmental sealing.
- RAL 7040 grey finish.
- IP65 / IP66 / IP69 ingress protection when correctly assembled.
Reliable Protection for Industrial Connector Systems
Industrial connector hoods such as the ILME CAV24LG29 provide a protective enclosure around compatible multipole connector inserts and cable terminations. They allow multiple power, control and signal circuits to be combined into a robust detachable connector assembly, helping simplify equipment installation, commissioning, servicing and maintenance.
A top-entry hood is particularly useful where cabling approaches the connector vertically or where straight cable routing is preferred. Combined with its Pg29 adapter, NBR gasket, high-construction enclosure and single-lever locking arrangement, the CAV24LG29 provides a dependable solution for secure industrial electrical connections using the larger size 104.27 enclosure format.
Typical Applications
- Industrial machinery and factory automation systems.
- Manufacturing and production equipment.
- Control panels and electrical control systems.
- Motor, power and machine connection systems.
- Conveyors and material handling equipment.
- Packaging and processing machinery.
