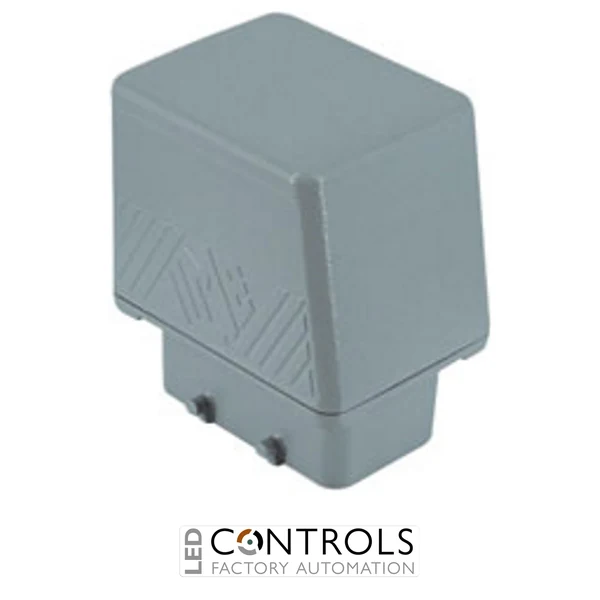

Why Choose the ILME CBC10 Big Hood?
The ILME CBC10, manufacturer part number CBC 10, is a robust BIG aluminium industrial connector hood designed for compatible multipole connector inserts used in machinery, automation and demanding electrical installations. Its enlarged construction provides additional connection space, making it particularly useful where conventional connector hoods do not provide sufficient room for wiring, termination or customised cable routing.
Designed for size 57.27 connector assemblies, the CBC10 features a four-peg closing arrangement for secure engagement with compatible lever-equipped mating components. The hood is manufactured without pre-formed cable entries and is specifically designed to be drilled, allowing the cable-entry positions and dimensions to be configured according to the requirements of the installation.
The CBC10 provides IP66 protection when correctly configured and assembled with suitable compatible components. Its BIG aluminium construction, expanded connection space and customisable cable-entry arrangement make it a versatile enclosure for industrial machinery, manufacturing equipment, control systems and automation applications requiring additional installation flexibility.
Key Advantages
- Robust BIG aluminium connector hood for size 57.27 assemblies.
- Four locking pegs provide secure engagement with compatible lever-equipped mating components.
- No pre-formed cable entries, allowing suitable entries to be drilled according to installation requirements.
- Enlarged construction provides additional connection and wiring space.
- IP66 protection when correctly configured and assembled with suitable components.
- Flexible solution for machinery and industrial installations requiring customised cable routing.
Key Features
- ILME BIG enclosure design.
- Size 57.27 connector interface.
- Four-peg closing arrangement.
- Without cable entries.
- Designed to be drilled for the required cable-entry configuration.
- Aluminium hood construction.
- Expanded internal connection space.
- IP66 degree of protection when correctly configured and assembled.
- Designed for compatible ILME multipole connector inserts and mating components.
Flexible Protection for Industrial Connector Systems
Industrial connector hoods such as the ILME CBC10 provide a protective enclosure around compatible multipole connector inserts and their electrical terminations. BIG-format hoods provide additional internal connection space, which can be particularly valuable for larger cable arrangements, complex wiring or applications where more room is required around the connector termination area.
Unlike hoods supplied with a predetermined cable entry, the CBC10 is supplied without cable entries and is designed to be drilled. This enables the installer or equipment designer to create a suitable cable-entry arrangement for the application while retaining the robust size 57.27 connector interface and four-peg mating system.
Typical Applications
- Industrial machinery and factory automation systems.
- Manufacturing and production equipment.
- Custom machine-building and electrical installations.
- Control, power and signal connection systems.
- Applications requiring additional connector wiring space.
- Installations requiring customised cable-entry positions.
