Why Choose the Ilme CC0.5AN Male Crimp Contact?

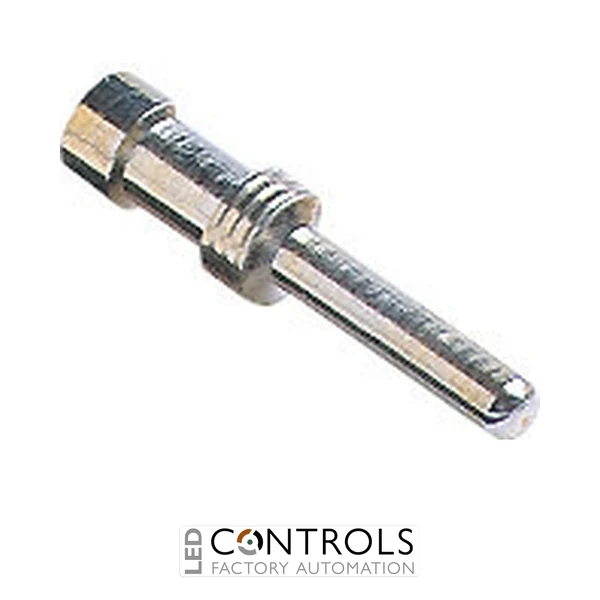

The Ilme CC0.5AN is a precision-manufactured male crimp contact designed for use with compatible Ilme heavy-duty multipole connector inserts. Its turned construction and silver-plated contact surface provide a reliable electrical interface for industrial machinery, automation and control applications.
Rated for currents up to 16 A, the CC0.5AN is designed for conductors with a cross-sectional area of 0.5 mm², corresponding to approximately 20 AWG. The crimp termination method provides a secure mechanical and electrical connection when installed using the appropriate Ilme crimping equipment.
The contact requires a conductor stripping length of approximately 7.5 mm and is intended for insertion into compatible Ilme crimp connector housings. Its male contact geometry makes it suitable for mating with the corresponding female contact arrangement in industrial detachable connector assemblies.
Key Advantages
- Precision male turned crimp contact for Ilme industrial connectors.
- 16 A current rating for dependable power and control connections.
- Designed for 0.5 mm² conductors.
- Silver-plated contact surface supports reliable electrical conductivity.
- Crimp termination provides a secure connection without screw terminals.
- Suitable for compatible Ilme heavy-duty multipole connector inserts.
Key Features
- Ilme CC series crimp contact.
- Male contact configuration.
- Turned silver-plated contact construction.
- 16 A rated current.
- 0.5 mm² conductor cross-section.
- Suitable for approximately 20 AWG conductors.
- 7.5 mm conductor stripping length.
- Crimp electrical termination.
Crimp contacts provide a secure electrical termination by mechanically compressing the contact around the prepared conductor. When the correct conductor size and crimping tool are used, this method creates a durable connection that is well suited to vibration-prone machinery and industrial installations.
The Ilme CC0.5AN combines a turned male contact design with silver plating and a 16 A current rating. Installed into a compatible Ilme crimp insert, it forms part of a modular heavy-duty connector system that allows electrical equipment to be connected and disconnected efficiently during installation, servicing or equipment replacement.
Typical Applications
- Heavy-duty industrial multipole connectors.
- Machine building and factory automation.
- Electrical control panel connections.
- Motor and actuator wiring.
- Production and processing machinery.
- Detachable power and control cable assemblies.
