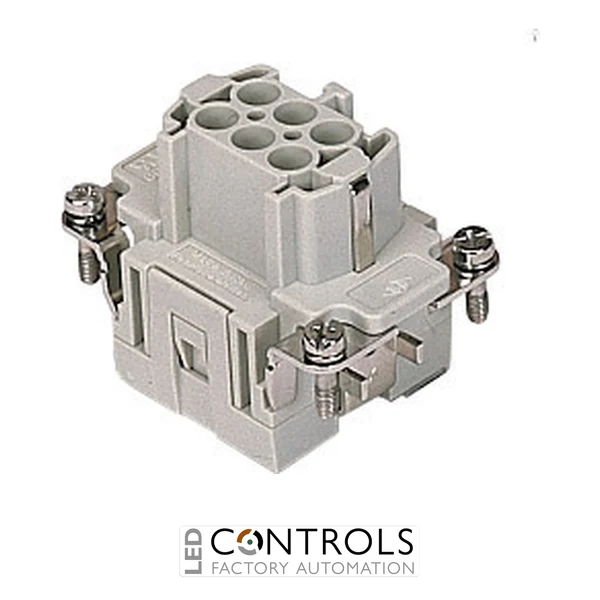

Why Choose the ILME CCEF06 Female Insert?
The ILME CCEF06 is a robust 6-pole plus earth female connector insert designed for heavy-duty industrial multipole connections in machinery, automation equipment and electrical control systems. Part of the ILME CCE series, this insert uses crimp contacts to provide secure, reliable electrical connections where dependable performance and straightforward maintenance are essential.
Rated at 16 A and 500 V, the CCEF06 provides six power or signal poles plus a protective earth connection in the compact 44.27 enclosure size. The insert is manufactured from durable polycarbonate with a UL94 V-0 flammability rating and is designed for use with compatible ILME housings, hoods and CCE-series components.
The CCEF06 uses separate 16 A female crimp contacts, allowing the appropriate contact to be selected for the conductor size used in the application. Compatible ILME CCF contacts cover conductor sizes from 0.14–4 mm², providing flexibility for industrial wiring applications while retaining the advantages of a professional crimp termination.
Key Advantages
- Heavy-duty 6-pole plus protective earth female insert for industrial multipole connectors.
- 16 A current rating suitable for power, control and machinery connections.
- 500 V rated voltage for demanding industrial electrical applications.
- Crimp termination provides secure and consistent conductor connections.
- Separate contacts allow selection to suit conductor sizes from 0.14–4 mm².
- Compact 44.27 size for compatible ILME industrial connector enclosures.
Key Features
- ILME CCE series heavy-duty connector insert.
- 6 poles + PE configuration.
- Female insert for female crimp contacts.
- 16 A rated current.
- 500 V rated voltage.
- 6 kV rated impulse withstand voltage.
- Crimp connection technology for reliable industrial terminations.
- Compatible with conductor sizes from 0.14–4 mm² when the appropriate ILME contact is selected.
- Durable polycarbonate insulating body.
- UL94 V-0 flammability classification.
- Designed for enclosure size 44.27.
- Crimp contacts are ordered separately.
Reliable Multipole Connectivity for Industrial Equipment
Heavy-duty multipole connectors allow multiple electrical circuits to be combined into a single robust plug-and-socket connection. The ILME CCEF06 provides the female insert for a 6-pole plus earth arrangement, helping simplify installation, equipment connection and maintenance in machinery and industrial electrical systems.
The CCE series uses removable crimp contacts, enabling installers to select the correct contact for each conductor size and create repeatable terminations using the appropriate crimping tool. When installed with compatible ILME enclosures and mating components, the CCEF06 provides a dependable connection solution for industrial environments where equipment may need to be installed, disconnected or serviced efficiently.
Typical Applications
- Industrial machinery and machine-tool connections.
- Factory automation and production equipment.
- Motor and power connections.
- Industrial control panels and switchgear.
- Robotics and material handling equipment.
- OEM machinery and modular electrical systems.
