Why Choose the ILME CCEF10 Female Insert?

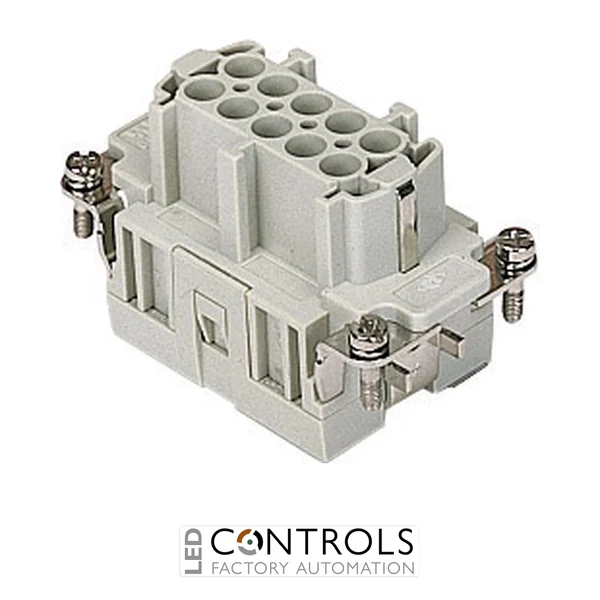

The ILME CCEF10 is a robust 10-pole plus earth female connector insert designed for heavy-duty industrial multipole connections in machinery, automation equipment and electrical control systems. Part of the ILME CCE series, this insert uses crimp contacts to provide secure and reliable electrical connections where dependable performance and straightforward equipment maintenance are essential.
Rated at 16 A and 500 V, the CCEF10 provides ten electrical poles plus a protective earth connection in the compact 57.27 enclosure size. The insert features a durable polycarbonate insulating body with a UL94 V-0 flammability rating and is designed for installation in compatible ILME heavy-duty connector hoods and housings.
The CCEF10 uses separate 16 A female crimp contacts, allowing the appropriate contact to be selected for the conductor size required by the application. Compatible ILME CCF contacts are available for conductor sizes from 0.5–4 mm², providing flexibility for industrial power and control wiring while retaining the consistency and reliability of a professional crimp termination.
Key Advantages
- Heavy-duty 10-pole plus protective earth female insert for industrial multipole connectors.
- 16 A current rating suitable for power, control and machinery connections.
- 500 V rated voltage for demanding industrial electrical applications.
- Crimp termination provides secure and repeatable conductor connections.
- Separate contacts allow selection to suit conductors from 0.5–4 mm².
- Compact 57.27 size for compatible ILME industrial connector enclosures.
Key Features
- ILME CCE series heavy-duty connector insert.
- 10 poles + PE configuration.
- Female insert for female crimp contacts.
- 16 A rated current.
- 500 V rated voltage.
- 6 kV rated impulse withstand voltage.
- Crimp connection technology for reliable industrial terminations.
- Compatible with conductor sizes from 0.5–4 mm² when the appropriate ILME contact is selected.
- Durable polycarbonate insulating body.
- UL94 V-0 flammability classification.
- Designed for enclosure size 57.27.
- Crimp contacts are ordered separately.
Reliable Multipole Connectivity for Industrial Equipment
Heavy-duty multipole connectors allow numerous electrical circuits to be combined into a single robust plug-and-socket connection. The ILME CCEF10 provides the female insert for a 10-pole plus earth arrangement, helping simplify equipment installation, electrical connection and maintenance in machinery and industrial automation systems.
The CCE series uses removable crimp contacts, enabling installers to select the correct contact for each conductor size and create consistent terminations using an appropriate crimping tool. When combined with compatible ILME enclosures and mating components, the CCEF10 provides a dependable connection solution for industrial environments where equipment may need to be installed, disconnected or serviced efficiently.
Typical Applications
- Industrial machinery and machine-tool connections.
- Factory automation and production equipment.
- Motor, power and control connections.
- Industrial control panels and switchgear.
- Robotics and material handling equipment.
- OEM machinery and modular electrical systems.
