Why Choose the Ilme CCEF24 Female Insert?

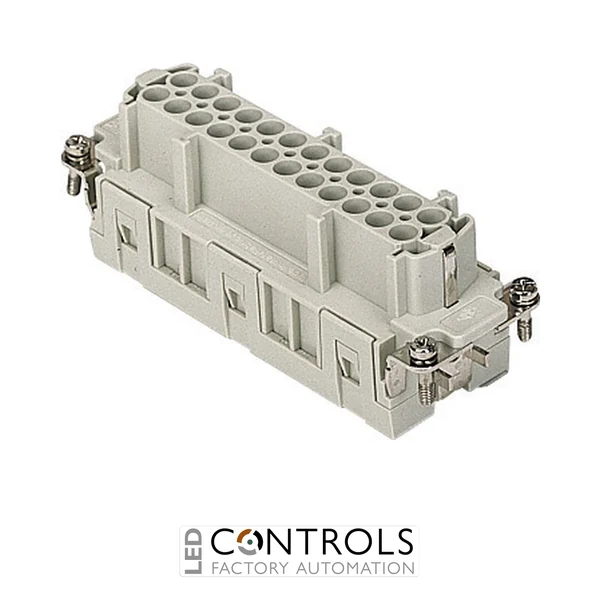

The Ilme CCEF24 is a heavy-duty 24-pole plus earth female connector insert designed for reliable power, control and signal connections in industrial machinery and automation systems. Part of Ilme's rectangular multipole connector range, it combines a high contact density with a 16 A rated current and crimp termination for dependable wiring in demanding electrical installations.
Designed for compatible size 104.27 Ilme hoods and housings, the CCEF24 provides 24 numbered female contact positions together with a protective earth connection. Its removable crimp-contact system supports efficient harness preparation and allows contacts to be terminated before insertion into the connector body, making it particularly suitable for production wiring and machine-building applications.
The CCEF24 has a rated operating voltage of 500 V and a rated current of 16 A. The insert uses Ilme CC series female crimp contacts, allowing the contact size to be selected to suit the conductor being terminated while maintaining a secure, serviceable multipole connection.
Key Advantages
- 24 poles plus protective earth provide high-density industrial connectivity.
- 16 A rated current suitable for power, control and auxiliary circuits.
- 500 V rated voltage for industrial electrical applications.
- Female crimp connection supports reliable pre-assembled cable harnesses.
- Designed for compatible Ilme size 104.27 hoods and housings.
- Replaceable crimp contacts simplify assembly, servicing and conductor selection.
- Robust multipole format is ideal for machinery and industrial automation installations.
Key Features
- Ilme CCE series multipole connector insert.
- 24-pole female insert plus earth.
- 16 A rated current.
- 500 V rated voltage.
- Crimp termination using compatible female contacts.
- Size 104.27 enclosure format.
- 24 numbered contact positions for organised circuit identification.
- Protective earth connection integrated into the insert assembly.
Reliable Multipole Connections for Industrial Equipment
Multipole connector inserts allow numerous electrical circuits to be combined within a single detachable industrial connector. This simplifies machine installation and maintenance by allowing complete power, control and signal cable assemblies to be disconnected without individually removing each conductor from terminal blocks.
The Ilme CCEF24 uses crimp contacts to provide consistent conductor termination and straightforward cable-harness assembly. When installed with the correct contacts and compatible Ilme size 104.27 enclosure components, it forms part of a robust rectangular connector system suited to repeated connection and disconnection in industrial environments.
Typical Applications
- Industrial machinery and machine building.
- Factory automation and production equipment.
- Control and instrumentation connections.
- Motor and auxiliary circuit connections.
- Pre-assembled industrial cable harnesses.
- Material handling and conveyor systems.
