Why Choose the ILME CCEM06 Male Insert?

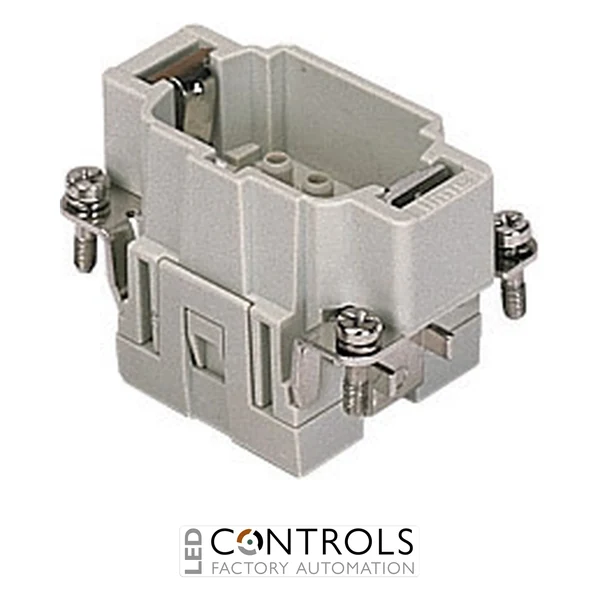

The ILME CCEM06 is a high-quality 6-pole plus earth male connector insert designed for heavy-duty rectangular connector systems used throughout industrial machinery and automation. Part of the ILME CCE series, it combines a compact size 44.27 format with crimp termination for secure and dependable electrical connections.
Rated at 16 A and 500 V, the CCEM06 provides six numbered power or signal poles plus a protective earth connection. The insert is manufactured from self-extinguishing thermoplastic material with a UL 94 V-0 flammability classification, supporting reliable service in demanding industrial electrical installations.
The CCEM06 uses removable crimp contacts, allowing conductors from approximately 0.14–4 mm² to be accommodated when the appropriate compatible contacts are selected. The insert itself is supplied without contacts and is designed for compatible ILME size 44.27 hoods and housings.
Key Advantages
- 6 poles plus protective earth for industrial multipole connections.
- 16 A rated current for power, control and signal circuits.
- 500 V rated voltage for demanding industrial applications.
- Crimp termination provides secure and consistent conductor connections.
- Accepts compatible contacts covering approximately 0.14–4 mm² conductors.
- Compact size 44.27 format for compatible ILME enclosures.
- Self-extinguishing insulating material rated UL 94 V-0.
Key Features
- ILME CCE series male insert.
- 6 poles + PE configuration.
- 16 A maximum rated current.
- 500 V nominal rated voltage.
- 6 kV rated impulse withstand voltage.
- Pollution degree 3.
- Crimp connection for removable male contacts.
- Size 44.27 enclosure format.
- Operating temperature range of -40 °C to +125 °C.
- Mechanical durability of at least 500 mating cycles.
Reliable Crimp Connectivity for Industrial Equipment
Crimp connector inserts provide consistent electrical and mechanical connections while allowing individual contacts to be prepared before insertion into the connector body. The ILME CCEM06 uses replaceable male crimp contacts, enabling the appropriate contact size to be selected for the conductor being terminated.
Combined with a compatible ILME size 44.27 hood or housing and corresponding female insert, the CCEM06 creates a robust detachable multipole interface for industrial equipment. This modular arrangement simplifies machine installation, servicing and replacement while avoiding the need to disconnect individual field conductors whenever equipment is removed.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and control systems.
- Motor and drive connections.
- Robotics and material handling systems.
- Control panels and machine wiring.
- Multipole power, control and signal connections.
