Why Choose the ILME CCEM10 Male Insert?

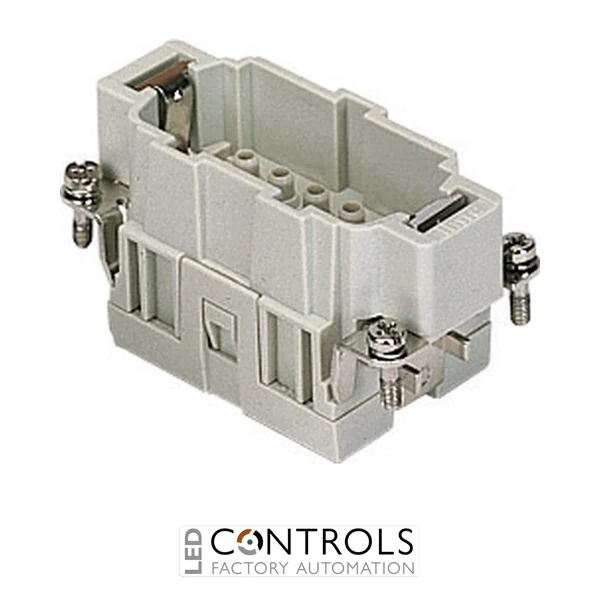

The ILME CCEM10 is a high-quality 10-pole plus earth male connector insert designed for heavy-duty rectangular connector systems used throughout industrial machinery, automation and control installations. Part of the ILME CCE series, it combines a size 57.27 format with crimp termination for secure, modular and dependable electrical connections.
Rated at 16 A and 500 V, the CCEM10 provides ten numbered contacts plus a protective earth connection. Its multipole configuration makes it suitable for carrying power, control and signal circuits through a single detachable industrial connector, simplifying equipment installation and maintenance.
The CCEM10 uses removable male crimp contacts, allowing the appropriate contact to be selected for the conductor being terminated. Compatible contacts accommodate conductor cross-sections from approximately 0.14–4 mm², and the insert is designed for compatible ILME size 57.27 hoods and housings.
Key Advantages
- 10 poles plus protective earth for multipole industrial connections.
- 16 A rated current for power, control and signal applications.
- 500 V rated voltage for demanding industrial circuits.
- Crimp termination provides secure and consistent conductor connections.
- Compatible contacts accommodate approximately 0.14–4 mm² conductors.
- Size 57.27 format for compatible ILME connector enclosures.
- Modular contact system supports efficient assembly, servicing and maintenance.
Key Features
- ILME CCE series male insert.
- 10 poles + PE configuration.
- 16 A rated current.
- 500 V rated voltage.
- 6 kV rated impulse withstand voltage.
- Pollution degree 3.
- Crimp connection using removable male contacts.
- Size 57.27 enclosure format.
- Operating temperature range of -40 °C to +125 °C.
- Designed for at least 500 mating cycles.
Reliable Crimp Connectivity for Industrial Equipment
Crimp connector inserts provide repeatable electrical connections while allowing individual contacts to be terminated before they are installed into the insert. The ILME CCEM10 uses removable male crimp contacts, enabling installers to select the correct contact size for each conductor and create a robust multipole connection.
Combined with a compatible ILME size 57.27 hood or housing and corresponding female insert, the CCEM10 creates a detachable interface for industrial equipment. This modular arrangement can simplify machine installation, servicing and component replacement by allowing complete electrical assemblies to be disconnected without individually removing field conductors.
Typical Applications
- Industrial machinery and production equipment.
- Factory automation and control systems.
- Motor and drive connection assemblies.
- Robotics and material handling systems.
- Electrical control panels and machine wiring.
- Multipole power, control and signal connections.
