Why Choose the Ilme CCFD0.5 Female Crimp Contact?

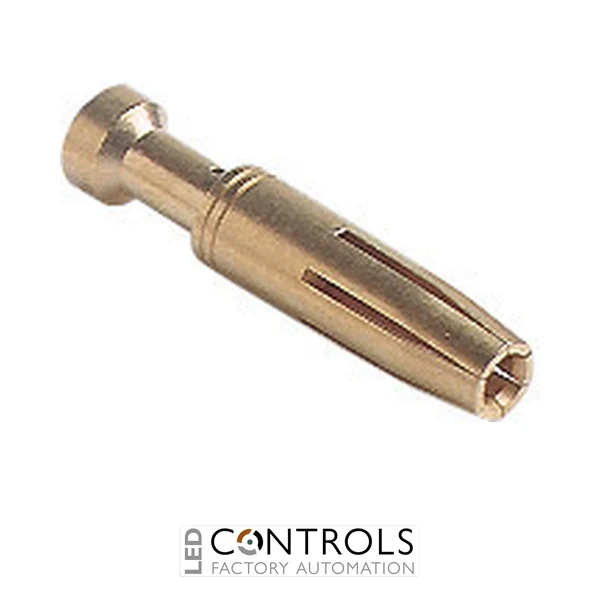

The Ilme CCFD0.5 is a precision-manufactured female crimp contact designed for compatible Ilme heavy-duty multipole connector inserts. Featuring a turned, gold-plated contact, it provides a dependable electrical interface for industrial machinery, automation, control and instrumentation applications where reliable detachable connections are required.
Rated for currents up to 16 A, the CCFD0.5 is designed for conductors with a cross-sectional area of 0.5 mm², corresponding to 20 AWG. Its crimp termination method creates a secure mechanical and electrical connection when installed using the appropriate compatible crimping equipment.
The CCFD0.5 requires a conductor stripping length of approximately 7.5 mm. Its female contact configuration and gold-plated mating surface make it suitable for compatible Ilme connector systems where consistent electrical contact and professional crimp termination are important.
Key Advantages
- Precision female turned crimp contact for compatible Ilme connectors.
- 16 A rated current for industrial power, control and signal connections.
- Designed specifically for 0.5 mm² conductors.
- Gold-plated contact surface provides a dependable electrical mating interface.
- Crimp termination creates a secure mechanical and electrical conductor connection.
- Suitable for professional heavy-duty multipole connector assemblies.
Key Features
- Ilme CCFD series crimp contact.
- Female contact configuration.
- Turned gold-plated contact construction.
- 16 A rated current.
- 0.5 mm² conductor cross-section.
- Suitable for 20 AWG conductors.
- 7.5 mm conductor stripping length.
- Crimp electrical termination.
Crimp contacts provide a secure electrical termination by mechanically compressing the contact around a correctly prepared conductor. When the specified conductor size and appropriate crimping equipment are used, the resulting connection is well suited to industrial equipment where dependable electrical continuity and resistance to vibration are important.
The Ilme CCFD0.5 combines a turned female contact design with gold plating, a 16 A current rating and compatibility with 0.5 mm² conductors. Installed into a compatible Ilme crimp insert, it forms part of a detachable multipole connector system for efficient installation, servicing and replacement of industrial equipment.
Typical Applications
- Heavy-duty industrial multipole connectors.
- Machine building and factory automation.
- Electrical control and instrumentation systems.
- Industrial power and signal connections.
- Production and processing machinery.
- Detachable industrial cable and connector assemblies.
