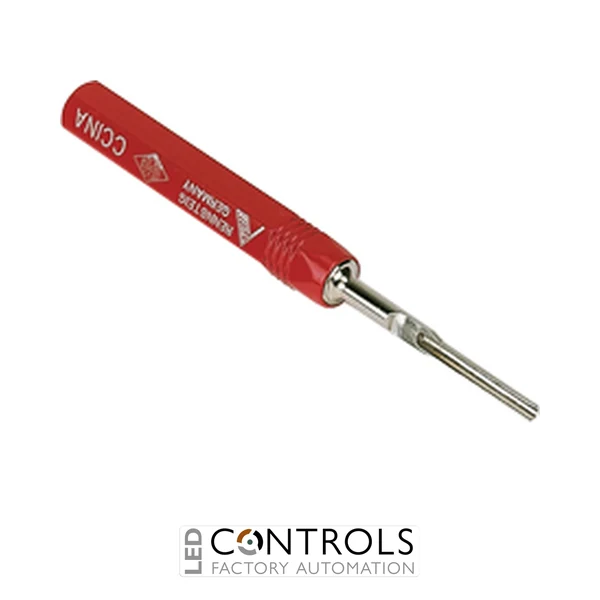

Why Choose the ILME CCINA Insertion Tool?
The ILME CCINA is a dedicated contact insertion tool designed for fitting crimp contacts securely into compatible ILME multipole connector inserts. Part of ILME’s professional range of tools and accessories for crimp contacts, it is intended for crimped contacts with conductor sizes up to 0.75 mm².
Correct installation of crimp contacts is essential for achieving dependable electrical connections and avoiding damage to connector inserts or contact retention mechanisms. The CCINA provides a purpose-designed method of guiding and seating compatible contacts into their correct position within the insert, making connector assembly faster and more controlled.
Designed as an accessory for ILME multipole industrial connectors, the CCINA is particularly useful for panel builders, machine builders, maintenance engineers and production technicians assembling crimp-terminated connectors. Its specialised design makes it a valuable addition to professional ILME connector assembly tooling.
Key Advantages
- Purpose-designed insertion tool for ILME crimp contacts.
- Suitable for crimped contacts with conductor sizes up to 0.75 mm².
- Helps guide contacts accurately into compatible connector inserts.
- Reduces the risk of damaging contacts during connector assembly.
- Supports consistent and efficient multipole connector production.
- Suitable for workshop, panel-building, maintenance and production environments.
Key Features
- ILME professional connector assembly tool.
- Designed specifically for contact insertion.
- For crimp contacts up to 0.75 mm².
- Used to insert contacts into compatible ILME inserts.
- Part of ILME’s tools and accessories range for crimp contacts.
- Designed for professional assembly of multipole industrial connectors.
- Compact hand-tool format for convenient workshop use.
Industrial multipole connectors rely on individual contacts being correctly seated and retained inside their inserts. A dedicated insertion tool helps guide the contact into position without applying unnecessary force to sensitive connector components, supporting consistent assembly and dependable long-term electrical connections.
The ILME CCINA is designed specifically for this task and is particularly suited to smaller crimp contacts associated with conductor sizes up to 0.75 mm². Using the appropriate ILME assembly tooling helps technicians build and service connector systems efficiently while protecting the contacts and inserts from avoidable installation damage.
Typical Applications
- Assembly of ILME multipole industrial connectors.
- Insertion of compatible crimp contacts into connector inserts.
- Industrial control-panel manufacturing.
- Machine-building and automation equipment assembly.
- Electrical harness and cable assembly.
- Industrial connector maintenance and servicing.
- Production and workshop connector assembly stations.
